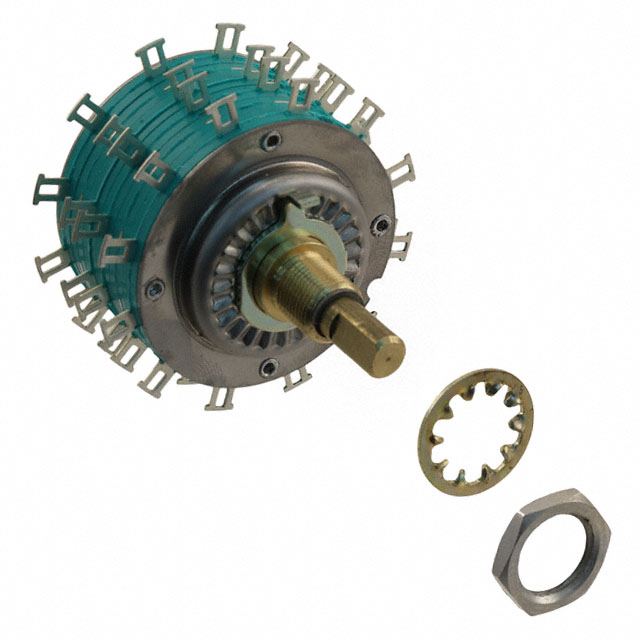

C7D0223N
Or copy the link below:
- Mfr.Part #
- C7D0223N
- Manufacturer
- Electroswitch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 23POS 500MA 125V
- Stock
- 6
- In Stock ：
- 6
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Electroswitch
- Product Category :
- Termination :
- Solder
- Index Stops :
- FIXED
- Contact Current(DC)-Max :
- 1A
- Mechanical Life :
- 25000 cycles
- Termination Style :
- Solder Lug
- Contact Current Rating :
- 500mA
- Mounting Type :
- Panel Mount
- Voltage - Rated AC :
- 125V
- Contact Current(AC)-Max :
- 0.5A
- Contact Finish :
- Silver
- Orientation :
- Straight
- Mount :
- Panel
- RoHS Status :
- RoHS Compliant
- Insulation Material :
- Diallyl Phthalate
- ECCN Code :
- EAR99
- Contact Material :
- Brass
- Depth Behind Panel :
- 32.49mm
- Contact Style :
- Non-Shorting
- Actuator Type :
- Flatted (6.35mm Dia)
- Number of Decks :
- 2
- Panel Cutout Dimensions :
- Circular - 9.78mm Dia
- Contact Timing :
- Non-Shorting (BBM)
- Factory Lead Time :
- 6 Weeks
- Contact Resistance :
- 3mOhm
- Max Voltage Rating (AC) :
- 125V
- Lead Free :
- Lead Free
- Index Angle :
- 15 °
- Number of Poles per Deck :
- 1
- Max Voltage Rating (DC) :
- 28V
- Published :
- 2006
- Circuit per Deck :
- SP23T
- Current Rating (Amps) :
- 500mA AC 1A DC
- Actuator Length :
- 14.29mm
- Switch Type :
- ROTARY SWITCH
- Throw Configuration :
- DP23T
- Reach Compliance Code :
- Unknown
- Bushing Length :
- 0.375 inch
- Voltage - Rated DC :
- 28V
- Current Rating :
- 1A
- Series :
- C7
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Number of Positions :
- 23
- Datasheets
- C7D0223N
