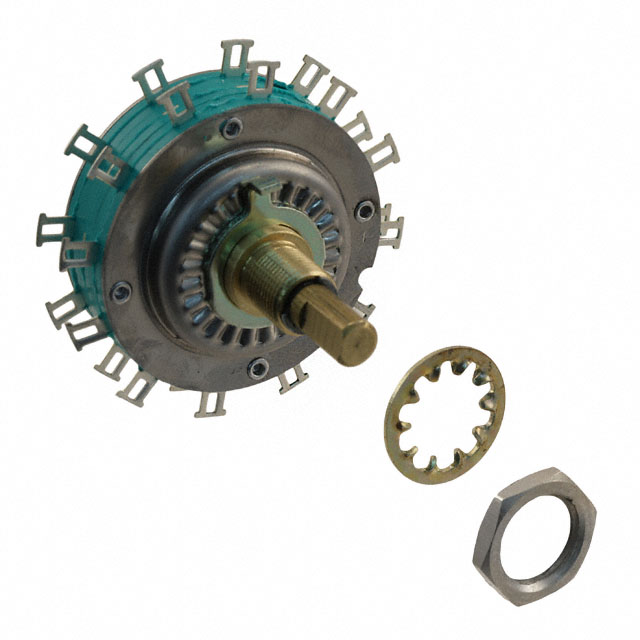

C7D0124N-C
Or copy the link below:
- Mfr.Part #
- C7D0124N-C
- Manufacturer
- Electroswitch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 24POS 500MA 125V
- Stock
- 72
- In Stock ：
- 72
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Electroswitch
- Product Category :
- Current Rating (Amps) :
- 500mA AC 1A DC
- Circuit per Deck :
- SP24T
- Contact Resistance :
- 3mOhm
- Bushing Type :
- 3/8-32
- Contact Current(DC)-Max :
- 1A
- Contact Material :
- Brass
- ECCN Code :
- EAR99
- Contact Current(AC)-Max :
- 0.5A
- Mount :
- Panel
- Reach Compliance Code :
- Unknown
- Contact Finish :
- Silver
- Lead Free :
- Lead Free
- Mounting Type :
- Panel Mount
- Number of Positions :
- 24
- Electrical Life :
- 25000 Cycle(s)
- Index Stops :
- Continuous
- Termination :
- Lug
- Max Voltage Rating (AC) :
- 125V
- Termination Style :
- Solder Lug
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Voltage - Rated AC :
- 125V
- Index Angle :
- 15 °
- HTS Code :
- 8536.50.90.20
- Switch Type :
- ROTARY SWITCH
- Insulation Material :
- Diallyl Phthalate
- Contact Timing :
- Non-Shorting (BBM)
- Factory Lead Time :
- 6 Weeks
- Mechanical Life :
- 25000 cycles
- Current Rating :
- 1A
- Published :
- 2006
- Actuator Type :
- Flatted (6.35mm Dia)
- Voltage - Rated DC :
- 28V
- Panel Cutout Dimensions :
- Circular - 9.78mm Dia
- Bushing Length :
- 0.375 inch
- Number of Decks :
- 1
- Depth Behind Panel :
- 20.60mm
- RoHS Status :
- RoHS Compliant
- Pbfree Code :
- yes
- Actuator Length :
- 14.29mm
- Series :
- C7
- Contact Style :
- Non-Shorting
- Max Voltage Rating (DC) :
- 28V
- Orientation :
- Straight
- Datasheets
- C7D0124N-C
