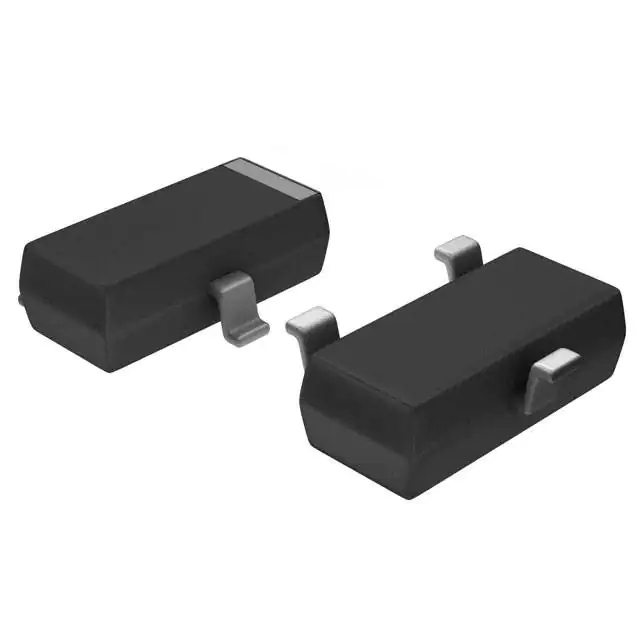

BSS138

Manufacturer :

ANBON SEMICONDUCTOR (INT'L) LIMITED

Product Category :

Transistors - FETs, MOSFETs - Single

Current Rating :

220mA

Mounting Type :

Surface Mount

Fall Time (Typ) :

9 ns

Drain to Source Breakdown Voltage :

50V

Min Operating Temperature :

-55°C

Width :

1.3mm

Dual Supply Voltage :

50V

Vgs (Max) :

±20V

Nominal Vgs :

1.3 V

Voltage - Rated DC :

50V

Package / Case :

TO-236-3, SC-59, SOT-23-3

Power Dissipation-Max :

360mW Ta

Factory Lead Time :

8 Weeks

Current - Continuous Drain (Id) @ 25°C :

220mA Ta

Height :

930μm

Lifecycle Status :

ACTIVE (Last Updated: 6 days ago)

Packaging :

Tape and Reel (TR)

Radiation Hardening :

No

Length :

2.92mm

Mount :

Surface Mount

Weight :

30mg

Contact Plating :

Tin

Drain to Source Voltage (Vdss) :

50V

REACH SVHC :

No SVHC

FET Type :

N-Channel

RoHS Status :

ROHS3 Compliant

Continuous Drain Current (ID) :

220mA

Supplier Device Package :

SOT-23-3

Drain to Source Resistance :

3.5Ohm

Lead Free :

Lead Free

Turn-Off Delay Time :

20 ns

Input Capacitance :

27pF

Element Configuration :

Single

Vgs(th) (Max) @ Id :

1.5V @ 1mA

Rds On Max :

3.5 Ω

Gate Charge (Qg) (Max) @ Vgs :

2.4nC @ 10V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Operating Temperature :

150°C

Rds On (Max) @ Id, Vgs :

3.5Ohm @ 220mA, 10V

Threshold Voltage :

1.3V

Rise Time :

9ns

Base Part Number :

BSS138

Resistance :

6Ohm

Published :

2002

Turn On Delay Time :

2.5 ns

Termination :

SMD/SMT

Number of Elements :

1

Operating Temperature :

-55°C~150°C TJ

Gate to Source Voltage (Vgs) :

20V

Input Capacitance (Ciss) (Max) @ Vds :

27pF @ 25V

Power Dissipation :

360mW

Drive Voltage (Max Rds On,Min Rds On) :

4.5V 10V

Number of Pins :

3
