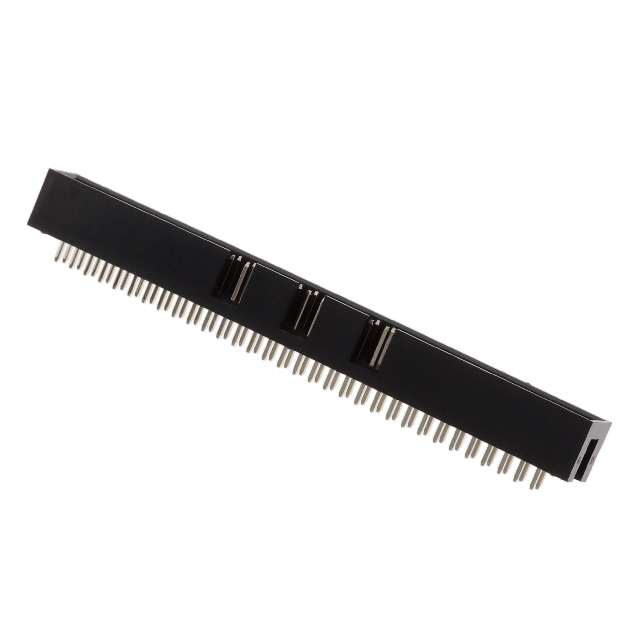

BHR-64-VUA

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Mounting Option 1 :

LOCKING

Dielectric Withstanding Voltage :

1000VAC V

Body Breadth :

0.346 inch

Insulation Material :

Polybutylene Terephthalate (PBT)

Termination :

Solder

ECCN Code :

EAR99

Additional Feature :

RoHS Compliant

Current Rating (Amps) :

3A

Reference Standard :

UL, CSA

Mating Contact Pitch :

0.1 inch

Connector Type :

Header

Style :

Board to Board or Cable

Fastening Type :

Push-Pull

Insulation Resistance :

5000000000Ohm

RoHS Status :

ROHS3 Compliant

Contact Finish - Mating :

Gold

Contact Finish Thickness - Mating :

Flash

Insulation Color :

Black

Contact Shape :

Square

Durability :

500 Cycles

Contact Type :

Male Pin

Polarization Key :

POLARIZED HOUSING

Material Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

BHR

Number of Rows :

2

Body Depth :

0.358 inch

Length - Termination :

0.13 inch

Feature :

Keying Slot

PCB Contact Pattern :

RECTANGULAR

Factory Lead Time :

10 Weeks

Voltage - Rated :

250VAC

HTS Code :

8536.69.40.40

Number of Positions :

64

Mounting Type :

Through Hole

Row Spacing - Mating :

0.100 (2.54mm)

Body Length or Diameter :

3.5 inch

Number Of PCB Rows :

2

Insulation Height :

0.346 8.80mm

Reliability :

COMMERCIAL

Number of Positions Loaded :

All

Operating Temperature :

-55°C~105°C

Number of Conductors :

ONE

Shrouding :

Shrouded - 4 Wall

Contact Material :

Brass

Contact Length - Post :

0.130 3.30mm

Pitch - Mating :

0.100 2.54mm

Packaging :

Tray
