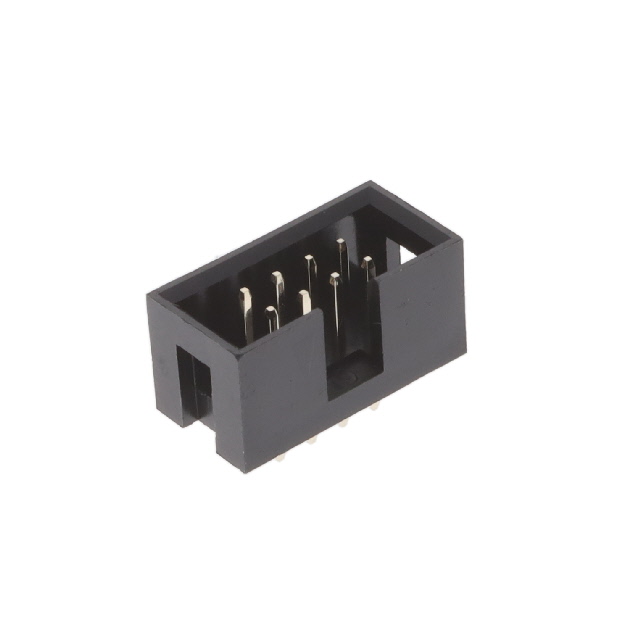

BHR-08-VUA

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Contact Shape :

Square

Mounting Type :

Through Hole

Voltage - Rated :

250VAC

Shrouding :

Shrouded - 4 Wall

Operating Temperature :

-55°C~105°C

Contact Finish Thickness - Mating :

Flash

Feature :

Keying Slot

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Contact Pattern :

RECTANGULAR

Contact Finish - Mating :

Gold

Pitch - Mating :

0.100 2.54mm

Row Spacing - Mating :

0.100 (2.54mm)

Current Rating (Amps) :

3A

Connector Type :

Header

Material Flammability Rating :

UL94 V-0

Polarization Key :

POLARIZED HOUSING

Insulation Material :

Polybutylene Terephthalate (PBT)

Termination :

Solder

Number of Positions Loaded :

All

Style :

Board to Board or Cable

Insulation Resistance :

5000000000Ohm

Contact Type :

Male Pin

Contact Length - Post :

0.130 3.30mm

Additional Feature :

RoHS Compliant

Body Breadth :

0.346 inch

ECCN Code :

EAR99

Durability :

500 Cycles

Number of Conductors :

ONE

Mating Contact Pitch :

0.1 inch

Contact Material :

Brass

Reference Standard :

UL, CSA

Dielectric Withstanding Voltage :

1000VAC V

RoHS Status :

ROHS3 Compliant

Packaging :

Bulk

Number of Rows :

2

Fastening Type :

Push-Pull

Number of Positions :

8

Reliability :

COMMERCIAL

Series :

BHR

Body Length or Diameter :

0.7 inch

Number Of PCB Rows :

2

Insulation Height :

0.346 8.80mm

Mounting Option 1 :

LOCKING

Factory Lead Time :

9 Weeks

Insulation Color :

Black

Length - Termination :

0.13 inch
