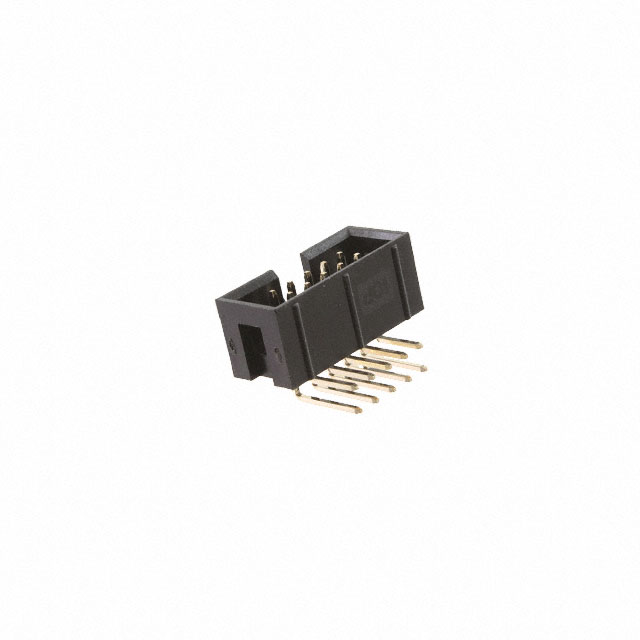

BHR-10-HUA

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Body Length or Diameter :

0.8 inch

RoHS Status :

ROHS3 Compliant

Termination :

Solder

Reference Standard :

UL, CSA

Connector Type :

Header

Row Spacing - Mating :

0.100 (2.54mm)

Contact Length - Post :

0.134 3.40mm

Shrouding :

Shrouded - 4 Wall

Material Flammability Rating :

UL94 V-0

Number of Rows :

2

Feature :

Keying Slot

Reliability :

COMMERCIAL

Current Rating :

1A

Pitch - Mating :

0.100 2.54mm

Contact Material :

Brass

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Mounting Option 1 :

LOCKING

Number of Positions Loaded :

All

Number of Conductors :

ONE

Packaging :

Bulk

Style :

Board to Board or Cable

Additional Feature :

RoHS Compliant

Durability :

500 Cycles

Insulation Color :

Black

Number Of PCB Rows :

2

PCB Contact Pattern :

RECTANGULAR

Contact Shape :

Square

JESD-609 Code :

e4

Contact Type :

Male Pin

Contact Finish - Mating :

Gold

Fastening Type :

Push-Pull

Operating Temperature :

-40°C~105°C

Body Depth :

0.518 inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Rated :

250VAC

Insulation Resistance :

5000000000Ohm

Length - Termination :

0.134 inch

Contact Finish Thickness - Mating :

Flash

Series :

BHR

Number of Positions :

10

ECCN Code :

EAR99

Body Breadth :

0.356 inch

HTS Code :

8536.69.40.40

Lead Free :

Lead Free

Factory Lead Time :

9 Weeks

Rated Current (Signal) :

1A

Mating Contact Pitch :

0.1 inch

Mounting Type :

Through Hole, Right Angle

Insulation Height :

0.356 9.05mm

Polarization Key :

POLARIZED HOUSING
