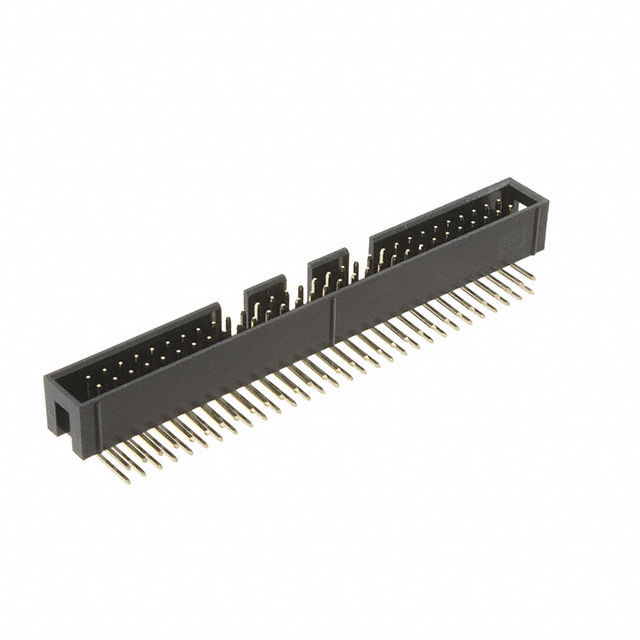

BHR-60-HUA

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Number of Positions Loaded :

All

Length - Termination :

0.118 inch

Reference Standard :

UL, CSA

Number of Rows :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

ONE

Shrouding :

Shrouded - 4 Wall

Contact Finish Thickness - Mating :

Flash

Pitch - Mating :

0.100 2.54mm

Insulation Height :

0.356 9.05mm

Durability :

500 Cycles

Fastening Type :

Push-Pull

Feature :

Keying Slot

Factory Lead Time :

10 Weeks

Mounting Option 2 :

Latch

Connector Type :

Header

Contact Finish - Mating :

Gold

Style :

Board to Board or Cable

Voltage - Rated :

250VAC

Termination :

Solder

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Additional Feature :

RoHS Compliant

Dielectric Withstanding Voltage :

1000VAC V

Contact Type :

Male Pin

Polarization Key :

POLARIZED HOUSING

PCB Contact Pattern :

RECTANGULAR

Body Breadth :

0.364 inch

Reliability :

COMMERCIAL

Row Spacing - Mating :

0.100 (2.54mm)

Mating Contact Pitch :

0.1 inch

Series :

BHR

Number of Positions :

60

Body Length or Diameter :

3.3 inch

Current Rating (Amps) :

1A

Number Of PCB Rows :

2

Insulation Color :

Black

Contact Material :

Brass

Mounting Type :

Through Hole, Right Angle

Insulation Resistance :

5000000000Ohm

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-40°C~105°C

Board Mounting Option :

SPLIT BOARD LOCK

Contact Shape :

Square

Contact Length - Post :

0.134 3.40mm

RoHS Status :

ROHS3 Compliant

Mounting Option 1 :

LOCKING

Packaging :

Tray
