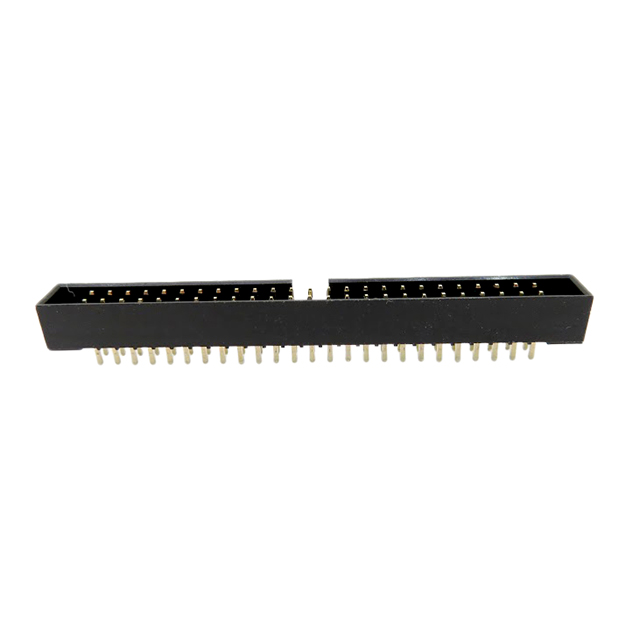

BHR-50-VUA

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

PCB Contact Pattern :

RECTANGULAR

Style :

Board to Board or Cable

Material Flammability Rating :

UL94 V-0

Mating Contact Pitch :

0.1 inch

Reliability :

COMMERCIAL

Row Spacing - Mating :

0.100 (2.54mm)

Contact Length - Post :

0.130 3.30mm

Contact Finish Thickness - Mating :

Flash

Contact Finish - Mating :

Gold

Packaging :

Bulk

Number Of PCB Rows :

2

Shrouding :

Shrouded - 4 Wall

Body Breadth :

0.346 inch

Voltage - Rated :

250VAC

Dielectric Withstanding Voltage :

1000VAC V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Height :

0.346 8.80mm

Contact Type :

Male Pin

Current Rating :

1A

HTS Code :

8536.69.40.40

Polarization Key :

POLARIZED HOUSING

Connector Type :

Header

Insulation Color :

Black

Body Depth :

0.358 inch

Mixed Contacts :

No

Fastening Type :

Push-Pull

Insulation Material :

Polybutylene Terephthalate (PBT)

Mounting Option 1 :

LOCKING

Pitch - Mating :

0.100 2.54mm

Filter Feature :

No

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Termination :

Solder

Length - Termination :

0.13 inch

Number of Rows :

2

Factory Lead Time :

9 Weeks

Feature :

Keying Slot

Number of Conductors :

ONE

Mounting Type :

Through Hole

Number of Positions Loaded :

All

Additional Feature :

RoHS Compliant

Contact Material :

Brass

Series :

BHR

Reference Standard :

UL, CSA

Contact Shape :

Square

Current Rating (Amps) :

3A

UL Flammability Code :

94V-0

Number of Positions :

50

Operating Temperature :

-55°C~105°C
