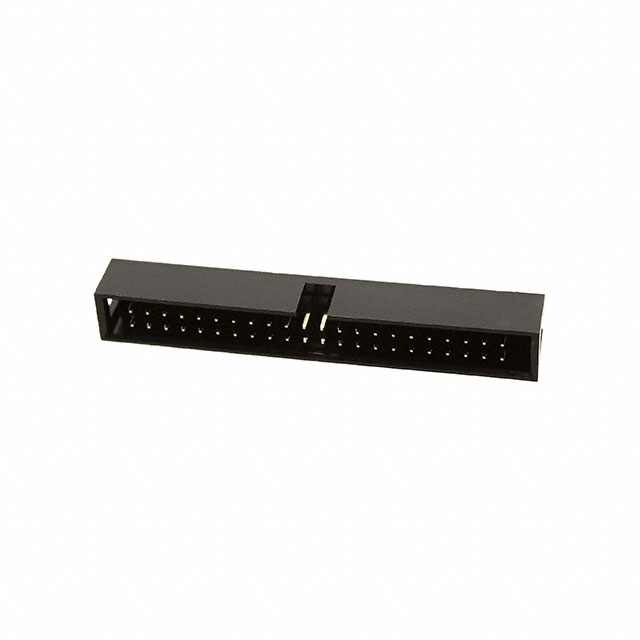

BHR-44-VUA

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Contact Length - Post :

0.130 3.30mm

Reliability :

COMMERCIAL

Body Breadth :

0.346 inch

Voltage - Rated :

250VAC

Contact Type :

Male Pin

Feature :

Keying Slot

Number Of PCB Rows :

2

Material Flammability Rating :

UL94 V-0

Number of Conductors :

ONE

Fastening Type :

Push-Pull

Mounting Type :

Through Hole

Pitch - Mating :

0.100 2.54mm

Mating Contact Pitch :

0.1 inch

Row Spacing - Mating :

0.100 (2.54mm)

Polarization Key :

POLARIZED HOUSING

Contact Finish - Mating :

Gold

Operating Temperature :

-55°C~105°C

Number of Positions Loaded :

All

Number of Rows :

2

PCB Contact Pattern :

RECTANGULAR

HTS Code :

8536.69.40.40

Contact Shape :

Square

RoHS Status :

ROHS3 Compliant

Termination :

Solder

Mounting Option 1 :

LOCKING

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

RoHS Compliant

Insulation Material :

Polybutylene Terephthalate (PBT)

Series :

BHR

Connector Type :

Header

Dielectric Withstanding Voltage :

1000VAC V

Reference Standard :

UL, CSA

Shrouding :

Shrouded - 4 Wall

Contact Material :

Brass

Length - Termination :

0.13 inch

Insulation Resistance :

5000000000Ohm

Contact Finish Thickness - Mating :

Flash

Body Depth :

0.358 inch

Durability :

500 Cycles

Number of Positions :

44

Insulation Color :

Black

Current Rating (Amps) :

3A

Style :

Board to Board or Cable

Packaging :

Tray

Factory Lead Time :

10 Weeks

Insulation Height :

0.346 8.80mm

ECCN Code :

EAR99
