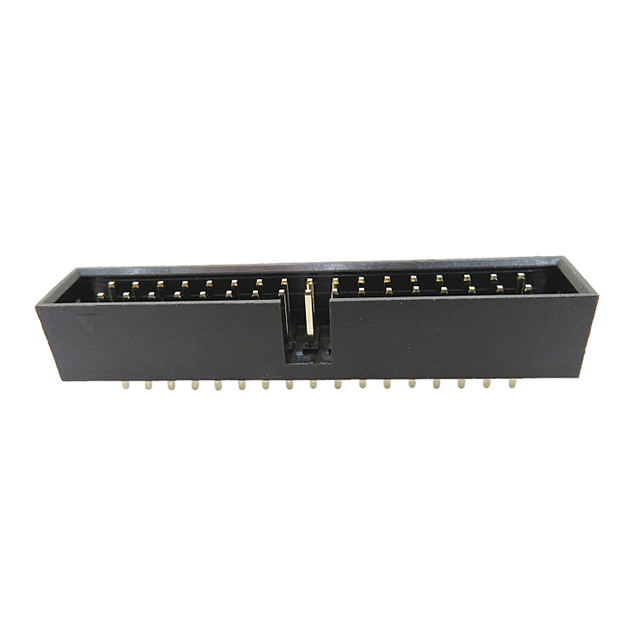

BHR-34-VUA

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Contact Finish Thickness - Mating :

Flash

Insulation Color :

Black

Mating Contact Pitch :

0.1 inch

Contact Shape :

Square

JESD-609 Code :

e4

Packaging :

Bulk

Connector Type :

Header

HTS Code :

8536.69.40.40

Number of Positions Loaded :

All

Additional Feature :

RoHS Compliant

Current Rating :

1A

Insulation Resistance :

5000000000Ohm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

ONE

Pitch - Mating :

0.100 2.54mm

Contact Length - Post :

0.130 3.30mm

Reference Standard :

UL, CSA

ECCN Code :

EAR99

Body Depth :

0.358 inch

Mounting Type :

Through Hole

Insulation Height :

0.346 8.80mm

Feature :

Keying Slot

Termination :

Solder

PCB Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Fastening Type :

Push-Pull

Housing Material :

PBT

Lead Free :

Lead Free

Series :

BHR

Mounting Option 1 :

LOCKING

Number Of PCB Rows :

2

Polarization Key :

POLARIZED HOUSING

Number of Rows :

2

Shrouding :

Shrouded - 4 Wall

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

250VAC

Style :

Board to Board or Cable

Current Rating (Amps) :

3A

Contact Finish - Mating :

Gold

Contact Material :

Brass

Contact Gender :

Male

Number of Positions :

34

Contact Type :

Male Pin

RoHS Status :

ROHS3 Compliant

Insulation Material :

Polybutylene Terephthalate (PBT)

Length - Termination :

0.13 inch

Factory Lead Time :

9 Weeks

Operating Temperature :

-55°C~105°C

Row Spacing - Mating :

0.100 (2.54mm)

Durability :

500 Cycles

Dielectric Withstanding Voltage :

1000VAC V
