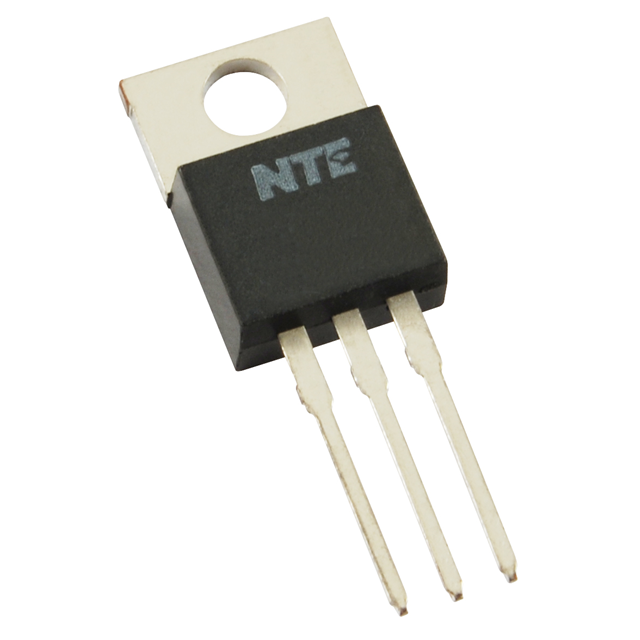

BD911
Or copy the link below:
- Mfr.Part #
- BD911
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- TO-220-3
- Datasheet
- Download
- Description
- TRANS NPN 100V 15A TO220
- Stock
- 857
- In Stock ：
- 857
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Number of Pins :
- 3
- Mounting Type :
- Through Hole
- Radiation Hardening :
- No
- Element Configuration :
- Single
- Factory Lead Time :
- 8 Weeks
- Collector Emitter Saturation Voltage :
- 1V
- JESD-609 Code :
- e3
- Weight :
- 90.718474g
- hFE Min :
- 15
- Vce Saturation (Max) @ Ib, Ic :
- 3V @ 2.5A, 10A
- JEDEC-95 Code :
- TO-220AB
- Number of Elements :
- 1
- Transistor Application :
- SWITCHING
- Lead Free :
- Lead Free
- Lifecycle Status :
- ACTIVE (Last Updated: 8 months ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Transition Frequency :
- 3MHz
- VCEsat-Max :
- 3 V
- Frequency :
- 3MHz
- Emitter Base Voltage (VEBO) :
- 5V
- Transistor Type :
- NPN
- Package / Case :
- TO-220-3
- Max Collector Current :
- 15A
- Power Dissipation :
- 90W
- Contact Plating :
- Tin
- Collector Emitter Breakdown Voltage :
- 100V
- Width :
- 4.6mm
- Voltage - Rated DC :
- 100V
- Current Rating :
- 15A
- Max Power Dissipation :
- 90W
- Base Part Number :
- BD911
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 15 @ 5A 4V
- Gain Bandwidth Product :
- 3MHz
- ECCN Code :
- EAR99
- Transistor Element Material :
- SILICON
- Collector Emitter Voltage (VCEO) :
- 100V
- Current - Collector Cutoff (Max) :
- 1mA
- RoHS Status :
- ROHS3 Compliant
- Polarity/Channel Type :
- NPN
- Collector Base Voltage (VCBO) :
- 100V
- Number of Terminations :
- 3
- Height :
- 9.15mm
- REACH SVHC :
- No SVHC
- Packaging :
- Tube
- Mount :
- Through Hole
- Length :
- 10.4mm
- Operating Temperature :
- 150°C TJ
- Pin Count :
- 3
- Datasheets
- BD911
BD911 Documents
NPN 150°C TJ 1mA 1 Elements 3 Terminations SILICON NPN TO-220-3 Tube Through Hole
BD911 Description
The BD909 and BD911 are silicon Epitaxial-Base NPN power transistors mounted in Jedec TO-220 plastic package. They are intented for use in power linear and switching applications. The complementary PNP types are BD910 and BD912 respectively.
BD911 Features
STMicroelectronics PREFERRED
SALESTYPES
