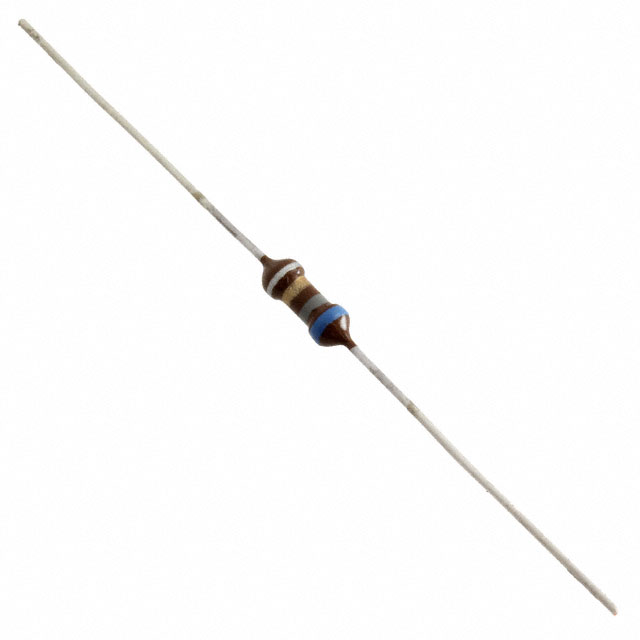

B78108S1682K000

Manufacturer :

EPCOS (TDK)

Product Category :

Fixed Inductors

Rad Hardened :

No

Lead Spacing :

Not Required(mm)

Series :

B78108S

Inductor Type :

GENERAL PURPOSE INDUCTOR

Pbfree Code :

yes

RoHS Status :

RoHS Compliant

DC Resistance (DCR) - Parallel :

510mOhm

HTS Code :

8504.50.80.00

Product Length (mm) :

11.5(mm)

Frequency - Self Resonant :

75MHz

Self Resonant Frequency :

75(MHz)

Quality Factor-Min (at L-nom) :

65

Shielding :

No

Tolerance :

10%

Inductance Tolerance :

10%

Military Standard :

Not

Radiation Hardening :

No

Test Frequency :

1MHz

Operating Temp Range :

-55C to 125C

Material - Core :

Ferrite

Inductor Application :

RF INDUCTOR

DC Resistance :

0.51(ohm)

Operating Temperature (Min) :

-55°C

Number of Functions :

1

Current Rating :

670mA

Terminal Shape :

Wire

Resistance :

510mOhm

Inductance-Nom (L) :

6.8 µH

Product Height (mm) :

Not Required(mm)

Lead Style :

Axial

Impedance :

Not Required(ohm)

Technology :

DRUM CORE

Tolerance (+ or -) :

10%

Special Feature :

Q MEASURED AT 7.96 MHZ

JESD-609 Code :

e3

Shape/Size Description :

TUBULAR PACKAGE

Operating Temperature (Max) :

125°C

Product Diameter (mm) :

4(mm)

ECCN Code :

EAR99

Product Depth (mm) :

Not Required(mm)

Type :

RF Choke

Length :

11.5mm

Core Material :

Ferrite

Number of Terminations :

2

Surface Mount :

No

Inductance :

6.8 µH

Failure Rate :

Not Required

Lifecycle Status :

Production (Last Updated: 2 months ago)

Rated Current-Max :

0.67A

Contact Plating :

Tin

Lead/Base Style :

Axial

Diameter :

4mm

DC Current :

670mA

Quality Factor :

65

Lead Length :

25mm

Packing Method :

TR

Construction :

Flame Retardant

Packaging :

Tape and Reel
