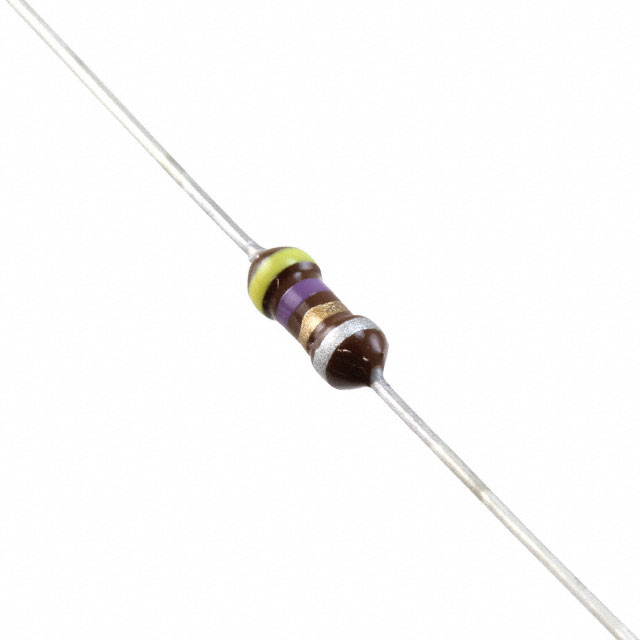

B78108S1472K009

Manufacturer :

EPCOS (TDK)

Product Category :

Fixed Inductors

Contact Plating :

Tin

Size / Dimension :

0.157 Dia x 0.362 L (4.00mm x 9.20mm)

Packing Method :

Ammo Pack

Resistance :

340mOhm

Number of Terminations :

2

Frequency - Self Resonant :

95MHz

HTS Code :

8504.50.80.00

JESD-609 Code :

e2

Material - Core :

Ferrite

Current Rating :

820mA

DC Current :

820mA

Inductance Frequency - Test :

7.96MHz

Tolerance :

10%

Max DC Current :

820mA

Packaging :

Tape and Box (TB)

Lead Pitch :

5mm

Current - Saturation :

--

Min Operating Temperature :

-55°C

Inductor Type :

GENERAL PURPOSE INDUCTOR

Diameter :

4mm

Q @ Freq :

60 @ 7.96MHz

Test Frequency :

7.96MHz

Package / Case :

Axial

Ratings :

--

Surface Mount :

No

Shape/Size Description :

TUBULAR PACKAGE

Type :

Wirewound

Max Operating Temperature :

125°C

DC Resistance (DCR) :

340 mOhm Max

Operating Temperature :

-55°C ~ 125°C

Length :

11.5mm

DC Resistance (DCR) - Parallel :

340mOhm

Q Factor :

60

Terminal Shape :

Wire

Inductor Application :

RF INDUCTOR

Inductance :

4.7 µH

Pbfree Code :

yes

ECCN Code :

EAR99

Height - Seated (Max) :

--

Width :

4mm

Inductance-Nom (L) :

4.7 µH

Shielding :

Unshielded

Series :

B78108S

Lifecycle Status :

Production (Last Updated: 2 months ago)

Military Standard :

Not

Lead Diameter :

800 µm

Mounting Type :

Through Hole

Quality Factor-Min (at L-nom) :

60

RoHS Status :

RoHS Compliant

Number of Functions :

1

Construction :

Flame Retardant

Lead/Base Style :

Axial

Supplier Device Package :

Axial
