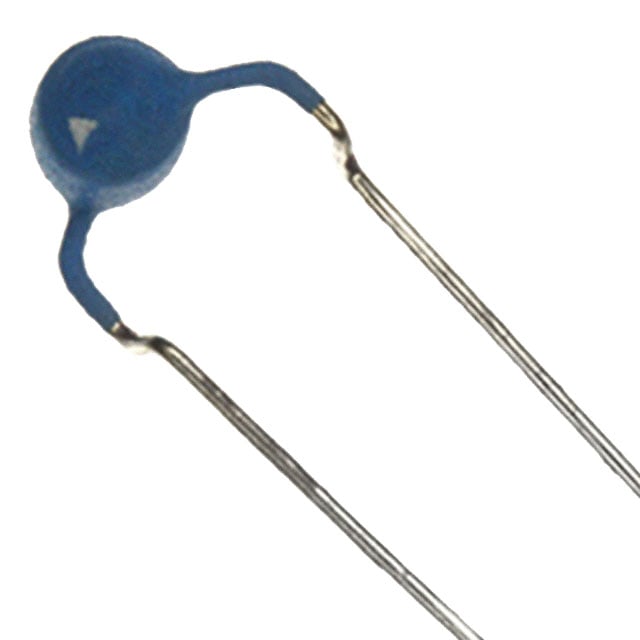

B59100C0090A070
Or copy the link below:
- Mfr.Part #
- B59100C0090A070
- Manufacturer
- EPCOS (TDK)
- Package / Case
- Radial
- Datasheet
- Download
- Description
- THERMISTOR PTC 100 OHM RADIAL
- Stock
- 1,826
- In Stock ：
- 1,826
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPCOS (TDK)
- Product Category :
- Temperature Sensors - PTC Thermistors
- Factory Lead Time :
- 16 Weeks
- Surface Mount :
- No
- Packing Method :
- STRIP PACK
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Thermistor Application :
- TEMPERATURE SENSING
- Series :
- B59100
- Resistance @ 25°C :
- 100Ohm
- Resistor Type :
- PTC THERMISTOR
- Mounting Feature :
- THROUGH HOLE MOUNT
- RoHS Status :
- ROHS3 Compliant
- JESD-609 Code :
- e3
- Package / Case :
- Radial
- Mounting Type :
- PCB, Through Hole
- Published :
- 2002
- Pbfree Code :
- yes
- Number of Terminations :
- 2
- Terminal Shape :
- Wire
- Terminal Finish :
- Tin (Sn)
- Rated (AC) Voltage (URac) :
- 30V
- Operating Temperature :
- 90°C~150°C
- Datasheets
- B59100C0090A070
B59100 Series PTC THERMISTOR TEMPERATURE SENSING 90°C~150°C PCB, Through Hole WIRE Bulk Radial
B59100C0090A070 Overview
Keeping PTC thermistors in Radial packages prevents them from being damaged. Packaged in the Bulk for safety, these PTC thermistors are designed to perform at high temperatures. PTC thermistors have terminations of 2.
B59100C0090A070 Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Package / Case: Radial
Resistance @ 25°C: 100Ohm
Terminal Shape: WIRE
Series: B59100
Operating Temperature: 90°C~150°C
B59100C0090A070 Applications
There are a lot of TDK Electronics Inc.
B59100C0090A070 PTC Thermistors applications.
- Display backlights
- Building automation
- Thermal threshold detection
- Motor control
- Chargers
- Thermal protection of winding in electric motors
- Secondary protection of battery packs
- Limit temperature monitoring
- Over-temperature protection of power components
- DC/DC converters
