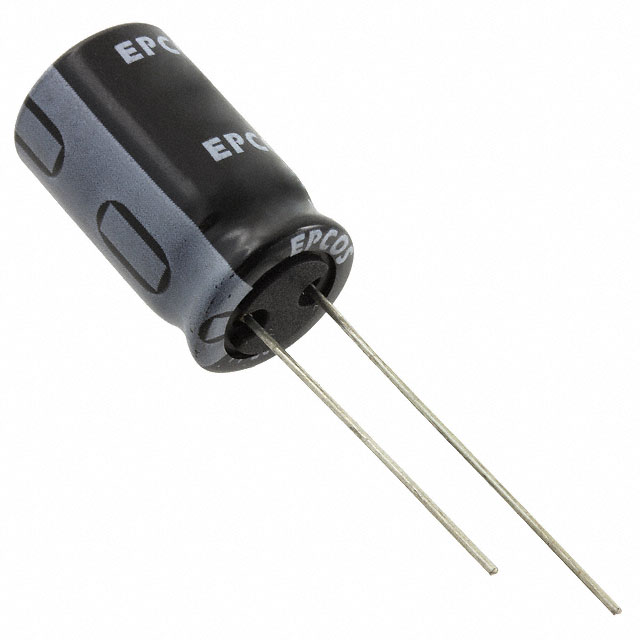

B41851F7108M000

Manufacturer :

EPCOS (TDK)

Product Category :

Aluminum Electrolytic Capacitors

Operating Temperature (Min) :

-40°C

Tolerance :

±20%

Size / Dimension :

0.492Dia 12.50mm

Terminal Finish :

Tin (Sn)

Package / Case :

Radial, Can

Operating Temperature (Max) :

105°C

Terminal Pitch :

5mm

Rated (DC) Voltage (URdc) :

35V

Series :

B41851

Packaging :

Bulk

Ripple Current @ Low Frequency :

810mA @ 120Hz

Leakage Current :

0.35mA

Dielectric Material :

ALUMINUM (WET)

Length :

20mm

Lead Spacing :

0.197 5.00mm

Applications :

GENERAL PURPOSE

Terminal Shape :

Wire

Mounting Type :

Through Hole

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Height Seated (Max) :

0.866 22.00mm

RoHS Status :

ROHS3 Compliant

Lifetime @ Temp :

2000 Hrs @ 105°C

Surface Mount :

No

ECCN Code :

EAR99

Diameter :

12.5mm

Capacitance :

1000µF

Polarization :

Polar

Pbfree Code :

yes

Tan Delta :

0.14

ESR (Equivalent Series Resistance) :

230mOhm @ 120Hz

JESD-609 Code :

e3

Factory Lead Time :

23 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Rated :

35V

Published :

2012

Number of Terminations :

2
