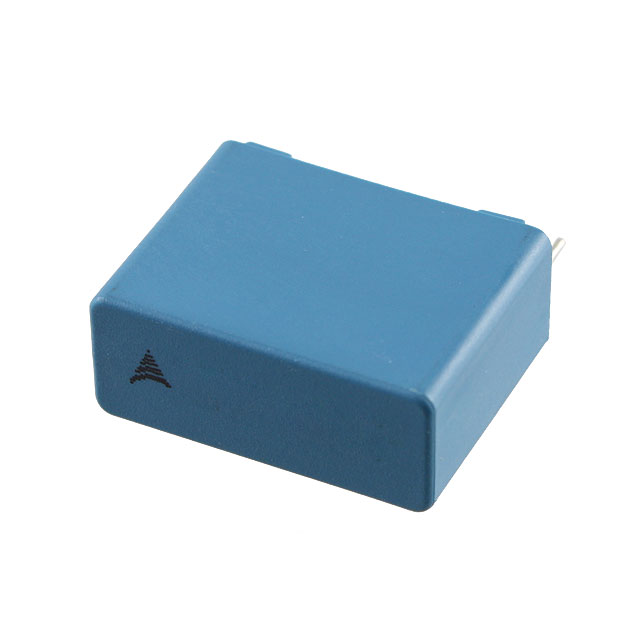

B32653A8223J000
Or copy the link below:
- Mfr.Part #
- B32653A8223J000
- Manufacturer
- EPCOS (TDK)
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 0.022UF 5% 2KVDC RADIAL
- Stock
- 46,293
- In Stock ：
- 46,293
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPCOS (TDK)
- Product Category :
- Film Capacitors
- Package / Case :
- Radial
- JESD-609 Code :
- e3
- Applications :
- DC Link, DC Filtering; High Pulse, DV/DT
- Height Seated (Max) :
- 1.161 29.50mm
- Width :
- 14.5mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- PC Pins
- Rated (DC) Voltage (URdc) :
- 2000V
- Terminal Shape :
- Wire
- Operating Temperature :
- -55°C~100°C
- Lead Spacing :
- 0.886 22.50mm
- Number of Terminations :
- 2
- Factory Lead Time :
- 22 Weeks
- Size / Dimension :
- 1.043Lx0.571W 26.50mmx14.50mm
- Capacitance :
- 0.022µF
- Surface Mount :
- No
- Terminal Pitch :
- 22.5mm
- ECCN Code :
- EAR99
- Rated (AC) Voltage (URac) :
- 1000V
- Terminal Finish :
- Matte Tin (Sn)
- Capacitor Type :
- FILM CAPACITOR
- Length :
- 26.5mm
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated DC :
- 2000V 2kV
- Pbfree Code :
- yes
- Tolerance :
- ±5%
- Packaging :
- Bulk
- Additional Feature :
- RATED AC VOLTAGE (V): 1000
- HTS Code :
- 8532.25.00.70
- Dielectric Material :
- Polypropylene (PP), Metallized
- Series :
- B32653
- Voltage - Rated AC :
- 1000V 1kV
- Mounting Type :
- Through Hole
- Datasheets
- B32653A8223J000
B32653 0.022μF Film Capacitor ±5% Radial PC Pins 2000V 2kV-DC 1000V 1kV-AC Polypropylene (PP), Metallized
B32653A8223J000 Overview
To work properly, systems need a rated (DC) voltage of 2000V.Electrical devices such as this have a lead spacing of 0.886 22.50mm.Systems require a voltage of 1000V for their internal rated power (URac).In addition to operating at -55°C~100°C degrees, the device is capable of operating at other temperatures as well.
B32653A8223J000 Features
a rated (DC) voltage (URdc) of 2000V
an internal rated (AC) voltage (URac) of 1000V
B32653A8223J000 Applications
There are a lot of TDK Electronics Inc.
B32653A8223J000 applications of film capacitors.
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
- Filtering
- IGBT
- Compact fluorescent lamps (CFL)
- Switch mode power supplies
