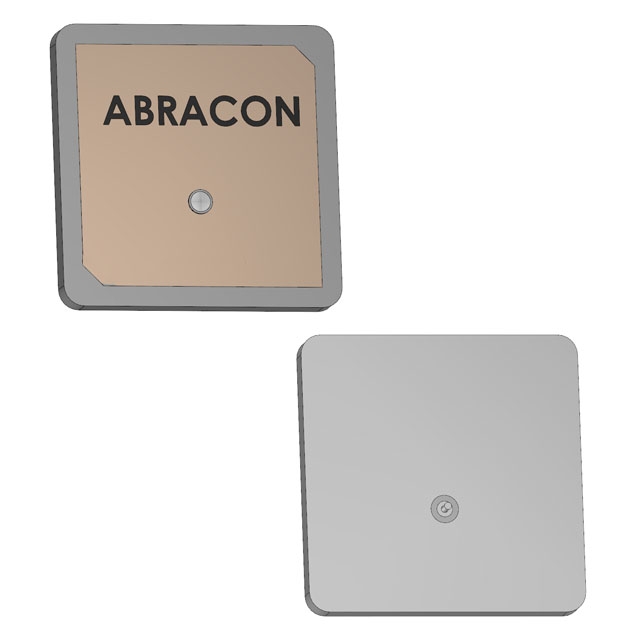

APARM3503-SG3
Or copy the link below:
- Mfr.Part #
- APARM3503-SG3
- Manufacturer
- Abracon
- Package / Case
- Datasheet
- Download
- Description
- GNSS/GPS/GLONASS/BEIDOU PTCH ANT
- Stock
- 19,729
- In Stock ：
- 19,729
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Abracon
- Product Category :
- RF Antennas
- Center Frequency :
- 1598 MHz
- Return Loss :
- -10dB
- Packaging :
- Bulk
- Antenna Type :
- Ceramic Patch
- Gain :
- 3dBi, 4dBi, 4.5dBi
- Product Status :
- Active
- Ingress Protection :
- -
- Frequency Range :
- 1.559GHz~1.563GHz 1.574GHz~1.576GHz 1.592GHz~1.604GHz 1.597GHz~1.607GHz
- Factory Lead Time :
- 15 Weeks
- RoHS Status :
- RoHS Compliant
- Height (Max) :
- 0.118 3.00mm
- Frequency Group :
- Wide B
- Mounting Type :
- Surface Mount
- Product :
- Vehicle Antennas
- Manufacturer :
- ABRACON
- Style :
- Ceramic
- Applications :
- Beidou, Galileo, GLONASS, GNSS, GPS
- VSWR :
- 1.8
- Width :
- 35 mm
- Product Type :
- GPS Antennas - GNSS, GLONASS, Galileo, Beidou
- Series :
- APARM
- Height :
- 3 mm
- Product Category :
- Antennas
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination Style :
- Pin
- RF Family/Standard :
- Navigation
- Minimum Operating Temperature :
- - 40 C
- Frequency (Center/Band) :
- 1.561GHz 1.575GHz 1.598GHz 1.602GHz
- Features :
- -
- Package :
- Bulk
- Number of Bands :
- 4
- Length :
- 35 mm
- Maximum Operating Temperature :
- + 105 C
- Mounting Style :
- Adhesive Mount
- Brand :
- ABRACON
- Subcategory :
- Antennas
- Reach Compliance Code :
- Compliant
- Polarization :
- RHCP
- RoHS :
- Details
- Termination :
- Solder
- Impedance :
- 50 Ohms
- Datasheets
- APARM3503-SG3
APARM3503-SG3 Documents
4 Bands Ceramic Patch Wide B Surface Mount Solder 1.561GHz 1.575GHz 1.598GHz 1.602GHz 3dBi, 4dBi, 4.5dBi Bulk 0.118 3.00mm Beidou, Galileo, GLONASS, GNSS, GPS
APARM3503-SG3 Overview
RF Antennas is made easier with Surface Mount.Among the APARM series of Antenna RFs, it is a camera.RF modulator is packaged in a solid enclosure of Bulk.
APARM3503-SG3 Features
With Surface Mount
APARM series
APARM3503-SG3 Applications
There are a lot of Abracon LLC
APARM3503-SG3 RF Antennas applications.
- Static electricity
- Cosmic noise
- Generators
- Lightings
- Rectifiers
- Inverters
- Satellites
- Transmission
- Cellphones
- Laptops
