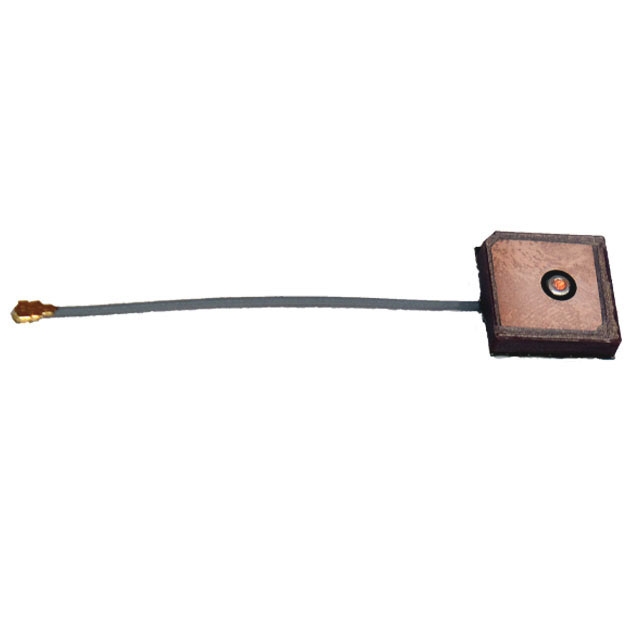

APARC1807A-SG3

Manufacturer :

Abracon

Product Category :

RF Antennas

Termination :

IPEX

Polarization :

RHCP

Return Loss :

-

Subcategory :

Antennas

Package :

Box

Application :

M2M, Remote Technology/Monitoring, Geofencing, Surveying, Mapping Systems, Logistics

Manufacturer :

ABRACON

Input Power :

-

RoHS :

Details

Applications :

Beidou, Galileo, GLONASS, GNSS, GPS

Impedance :

50 Ohms

Frequency Group :

UHF 1GHz~2GHz

Input Impedance :

50Ohm

Cable Length :

60 mm

Width :

18 mm

Type :

Active Antenna

Number of Bands :

1

Height (Max) :

0.299 7.60mm

Product Category :

Antennas

Length :

18 mm

VSWR :

2

Mounting Type :

Surface Mount

Mounting Style :

PCB Mount

Center Frequency :

1561.098 MHz, 1575.42 MHz, 1602 MHz

RoHS Status :

RoHS Compliant

Series :

APAR

Style :

Ceramic

Antenna Connector Type :

IPEX

Product Type :

GPS Antennas - GNSS, GLONASS, Galileo, Beidou

Frequency (Center/Band) :

1.561GHz 1.575GHz 1.602GHz

Termination Style :

Connector

Feature :

Cable - 68mm

Antenna Mounting :

I-Pex Connector

Brand :

ABRACON

Product Status :

Active

Minimum Operating Temperature :

- 40 C

Maximum Operating Temperature :

+ 85 C

Ingress Protection :

-

Cable Type :

68 mm RF1.13

Product :

PCB Antennas

Gain :

-6.5dBi, -6.5dBi, -6.0dBi

Packaging :

Bulk

RF Family/Standard :

Navigation

Features :

Cable - 68mm

Height :

7.6 mm

Frequency Range :

1.561GHz~1.602GHz

Moisture Sensitivity Level (MSL) :

Not Applicable

Antenna Type :

Ceramic Patch
