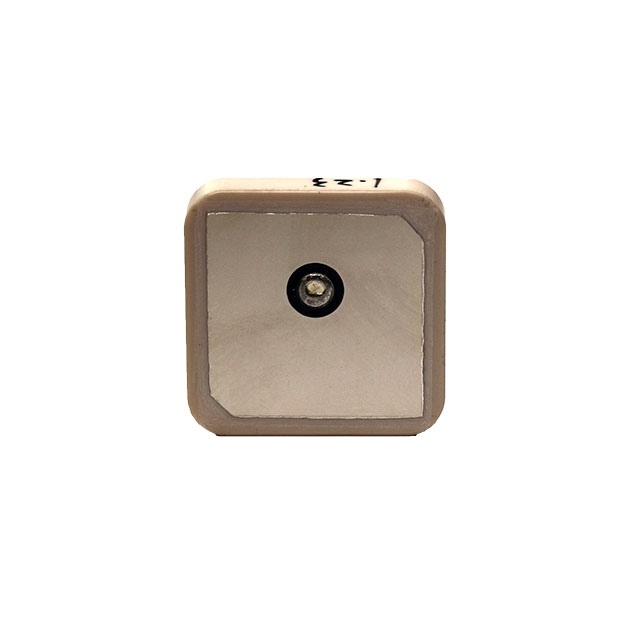

APARM2504-SG3

Manufacturer :

Abracon

Product Category :

RF Antennas

RoHS Status :

RoHS Compliant

Cable Type :

-

Features :

-

Center Frequency :

1.573 GHz

Packaging :

Bulk

Operating Temperature Classification :

INDUSTRIALC

Maximum Operating Temperature :

+ 105 C

Application :

M2M, Remote Technology/Monitoring, Geofencing, Navigation, Surveying, Mapping Systems, Logistics, Automotive

Minimum Operating Temperature :

- 40 C

Operating Temperature (Min) :

-40C

Product Status :

Active

Frequency (Center/Band) :

1.561GHz 1.575GHz 1.602GHz

Series :

APAR

Product Type :

GPS Antennas - GNSS, GLONASS, Galileo, Beidou

Brand :

ABRACON

Manufacturer :

ABRACON

Termination Style :

Pin

Return Loss :

-

Height :

4 mm

Antenna Type :

Ceramic Patch

Product :

PCB Antennas

Bandwidth :

28 MHz

Gain :

2.5dBi, 1.5dBi, 3.5dBi

Input Impedance :

50Ohm

Termination :

Solder

Antenna Connector Type :

-

Product Category :

Antennas

Mounting Style :

PCB Mount

Frequency Group :

UHF 1GHz~2GHz

Subcategory :

Antennas

VSWR :

1.8

Operating Temperature (Max) :

105C

Style :

Ceramic

Frequency :

1602(MHz)

Frequency Range :

1.561GHz~1.602GHz

Lead Length :

1.7mm

Width :

25.1 mm

Impedance :

50(ohm)

RF Family/Standard :

Navigation

Ingress Protection :

-

RoHS :

Details

Polarization :

RHCP

Mounting Type :

Through Hole

Factory Lead Time :

7 Weeks

Height (Max) :

0.157 4.00mm

Applications :

Beidou, Galileo, GLONASS, GNSS, GPS

Type :

Patch

Rad Hardened :

No

Input Power :

-

Number of Bands :

3

Length :

25.1 mm

Antenna Mounting :

Adhesive

VSWR (Max) :

1.8

Package :

Bulk

Moisture Sensitivity Level (MSL) :

Not Applicable
