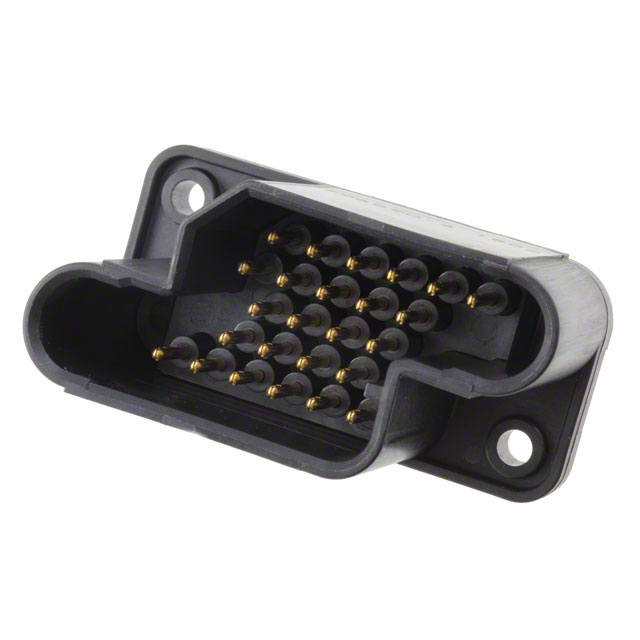

796590-4
Or copy the link below:
- Mfr.Part #
- 796590-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER DRAWER 25POS PCB
- Stock
- 13,556
- In Stock ：
- 13,556
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Pbfree Code :
- No
- Mount :
- Through Hole
- Lead Free :
- Contains Lead
- Contact Material :
- Bronze
- Filter Feature :
- No
- Operating Temperature :
- -55°C~130°C
- Material Flammability Rating :
- UL94 V-0
- Connector Style :
- Drawer
- Number of Positions Loaded :
- All
- ELV :
- Non-Compliant
- Flammability Rating :
- UL94 V-0
- Empty Shell :
- No
- Depth :
- 30.78mm
- Total Number of Contacts :
- 25
- Additional Feature :
- ACTION PIN
- Housing Material :
- Polysulfone
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 5
- Current Rating :
- 14A
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 27 Weeks
- RoHS Status :
- Non-RoHS Compliant
- Termination :
- Press-Fit
- Published :
- 2008
- Series :
- Metrimate
- IEC Conformance :
- No
- Max Voltage Rating (AC) :
- 600V
- DIN Conformance :
- No
- Connector Type :
- Header, Male Pins
- Mixed Contacts :
- No
- Option :
- GENERAL PURPOSE
- Number of Positions :
- 25
- Radiation Hardening :
- No
- Feature :
- Mating Guide
- Number of Ports :
- 1
- Color :
- Black
- Contact Finish :
- Gold
- Packaging :
- Bulk
- MIL Conformance :
- No
- Orientation :
- Vertical
- Length :
- 62.53mm
- Pitch :
- 0.200 5.08mm
- Gender :
- Male
- Datasheets
- 796590-4
Metrimate Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 25 Positions Pitch: 0.200 5.08mm -55°C~130°C Bulk Through Hole
796590-4 Overview
This product is packaged in a Header, Male Pins box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Metrimate Series.Furthermore, there are other features such as ACTION PIN, to name a few.In many ways, Mating Guide makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -55°C~130°C.Several tasks can be managed via its 1 ports.
796590-4 Features
Metrimate series
796590-4 Applications
There are a lot of TE Connectivity AMP Connectors
796590-4 Backplane Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
