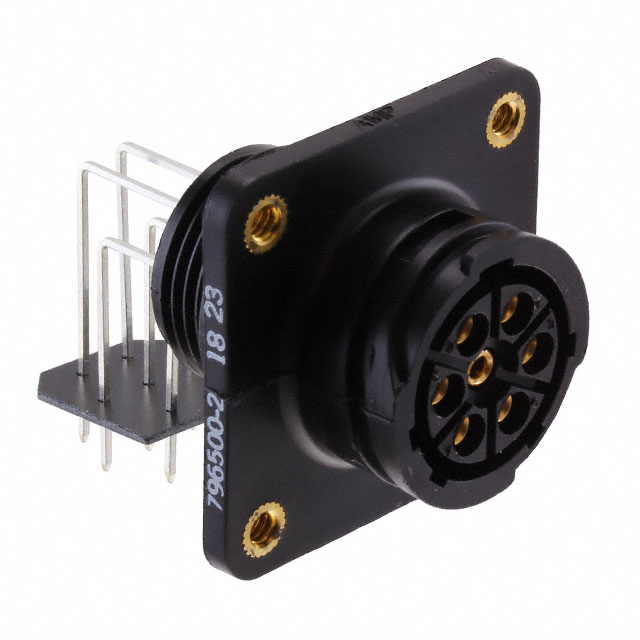

796500-2
Or copy the link below:
- Mfr.Part #
- 796500-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 7POS GOLD SOLDER
- Stock
- 12,210
- In Stock ：
- 12,210
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Assemblies
- Shell Material :
- Thermoplastic
- Material :
- Plastic
- Mixed Contacts :
- No
- MIL Conformance :
- No
- Number of Positions :
- 7
- Contact Material :
- Brass
- Backshell Type :
- Solid
- Contact Finish - Mating :
- Gold
- Orientation :
- Keyed
- Current Rating :
- 13A
- Connector Type :
- Receptacle, Female Sockets
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Number of Power Positions :
- 0
- Length :
- 32mm
- Mount :
- Panel
- Depth :
- 44.45mm
- RoHS Status :
- RoHS Compliant
- Housing Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Supply Voltage :
- 250V
- IEC Conformance :
- No
- Empty Shell :
- No
- Sealable :
- No
- Lead Free :
- Lead Free
- Operating Temperature :
- -55°C~105°C
- Mounting Feature :
- Flange
- Voltage - Rated :
- 250VAC/DC
- Shell Size - Insert :
- 13-7
- Material Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- Published :
- 2006
- Factory Lead Time :
- 14 Weeks
- Option :
- GENERAL PURPOSE
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Termination :
- Solder
- Total Number of Contacts :
- 7
- Packaging :
- Tray
- Mating Alignment :
- With
- ELV :
- Compliant
- Series :
- CPC Series 1
- Assembly Length :
- 44.45mm
- Filter Feature :
- No
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- DIN Conformance :
- No
- Fastening Type :
- Threaded
- Datasheets
- 796500-2
Receptacle, Female Sockets Thermoplastic Panel Mount, Through Hole, Right Angle 7 Positions Solder Gold Tray Keyed Threaded
796500-2 Overview
Packaging is in the form of Receptacle, Female Sockets.This device has a Panel Mount, Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the CPC Series 1 Series.There is a mounting hole at Panel.Devices operate at -55°C~105°C operating temperatures.
796500-2 Features
CPC Series 1 series
796500-2 Applications
There are a lot of TE Connectivity AMP Connectors
796500-2 Circular Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
