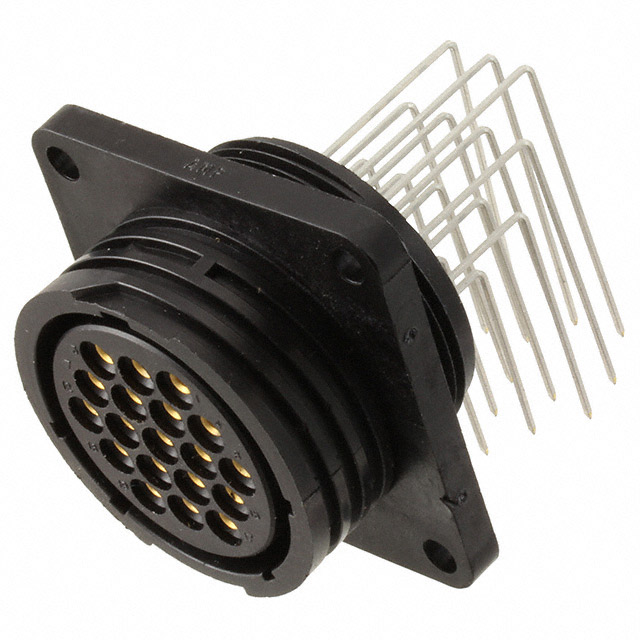

796502-1
Or copy the link below:
- Mfr.Part #
- 796502-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 19POS GOLD SLDR
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Assemblies
- Contact Finish - Mating :
- Gold
- RoHS Status :
- RoHS Compliant
- Radiation Hardening :
- No
- Contact Material :
- Brass
- Housing Color :
- Black
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Fastening Type :
- Threaded
- Mount :
- Panel
- MIL Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 250VAC/DC
- Material Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- Sealable :
- yes
- Packaging :
- Tray
- Empty Shell :
- No
- Shell Size - Insert :
- 23-19
- Operating Supply Voltage :
- 250V
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Series :
- CPC Series 1
- Total Number of Contacts :
- 19
- Mounting Feature :
- Flange
- Operating Temperature :
- -55°C~105°C
- IEC Conformance :
- No
- Filter Feature :
- No
- Number of Power Positions :
- 0
- Assembly Length :
- 54.61mm
- Orientation :
- A
- Mixed Contacts :
- No
- ELV :
- Compliant
- Mating Alignment :
- With
- Connector Type :
- Receptacle, Female Sockets
- Backshell Type :
- Solid
- Gender :
- FEMALE
- Number of Positions :
- 19
- Pbfree Code :
- No
- Factory Lead Time :
- 12 Weeks
- Shell Material :
- Thermoplastic
- Published :
- 2009
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Termination :
- Solder
- Datasheets
- 796502-1
Receptacle, Female Sockets Thermoplastic Panel Mount, Through Hole, Right Angle 19 Positions Solder Gold Tray A Threaded
796502-1 Overview
The product comes in a package of Receptacle, Female Sockets.Panel Mount, Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the CPC Series 1 Series.It is mounted by Panel.It operates at an operating temperature of -55°C~105°C.
796502-1 Features
CPC Series 1 series
796502-1 Applications
There are a lot of TE Connectivity AMP Connectors
796502-1 Circular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
