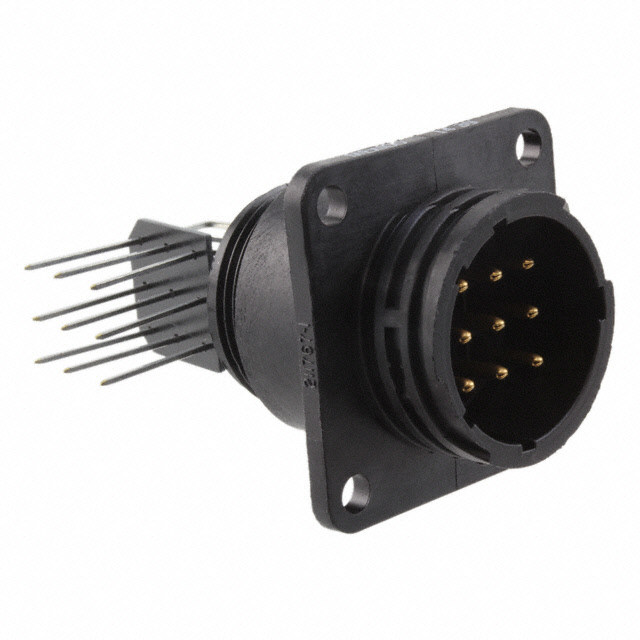

796497-1
Or copy the link below:
- Mfr.Part #
- 796497-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MALE 9POS GOLD SOLDER
- Stock
- 26,401
- In Stock ：
- 26,401
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Assemblies
- Voltage - Rated :
- 250VAC/DC
- RoHS Status :
- Non-RoHS Compliant
- Orientation :
- A
- DIN Conformance :
- No
- Filter Feature :
- No
- Packaging :
- Tray
- Mating Alignment :
- With
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Mount :
- Panel
- Connector Type :
- Receptacle, Male Pins
- Fastening Type :
- Threaded
- Contact Current Rating :
- 13A
- Number of Positions :
- 9
- IEC Conformance :
- No
- Operating Supply Voltage :
- 250V
- Housing Material :
- Nylon
- Max Current Rating :
- 13A
- Circuit Application :
- Power
- Shell Size - Insert :
- 17-9
- Shielding :
- Unshielded
- Factory Lead Time :
- 18 Weeks
- ELV :
- Non-Compliant
- Series :
- CPC Series 1
- Flammability Rating :
- UL94 V-1
- Number of Power Positions :
- 0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Mounting Feature :
- Flange
- Shell Material :
- Thermoplastic
- Mixed Contacts :
- No
- Backshell Type :
- Solid
- MIL Conformance :
- No
- Contact Material :
- Brass
- Contact Finish - Mating :
- Gold
- Sealable :
- No
- Pbfree Code :
- No
- Operating Temperature :
- -55°C~105°C
- Total Number of Contacts :
- 9
- Published :
- 2005
- Housing Color :
- Black
- Contact Gender :
- Male
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Empty Shell :
- No
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Assembly Length :
- 51.562mm
- Datasheets
- 796497-1
Receptacle, Male Pins Thermoplastic Panel Mount, Through Hole, Right Angle 9 Positions Solder Gold Tray A Threaded
796497-1 Overview
The packaging contains Receptacle, Male Pins.There is a Panel Mount, Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Tray.Product number CPC Series 1 belongs to the CPC Series 1 Series.There is a Panel mount on the part.This device operates at a temperature of -55°C~105°C.
796497-1 Features
CPC Series 1 series
796497-1 Applications
There are a lot of TE Connectivity AMP Connectors
796497-1 Circular Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
