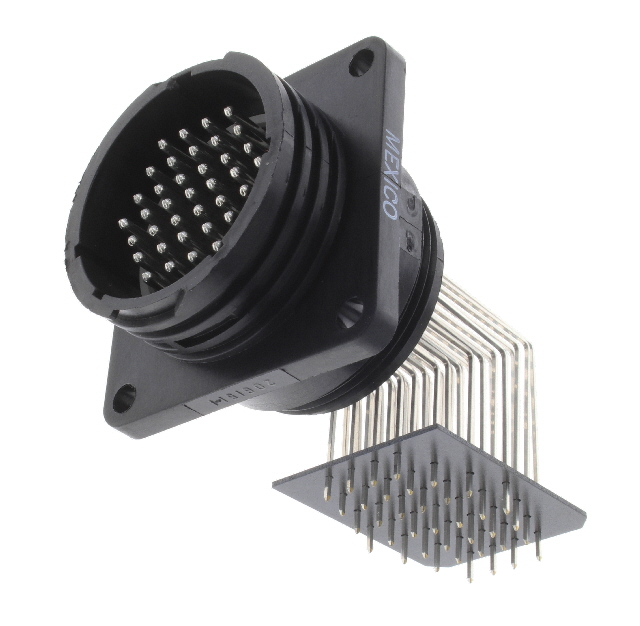

796406-4
Or copy the link below:
- Mfr.Part #
- 796406-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MALE 37POS TIN SOLDER
- Stock
- 40
- In Stock ：
- 40
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Assemblies
- Shell Size - Insert :
- 23-37
- MIL Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Brass
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- DIN Conformance :
- No
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Empty Shell :
- No
- Assembly Length :
- 71.882mm
- Operating Temperature :
- -55°C~105°C
- Factory Lead Time :
- 11 Weeks
- Packaging :
- Bulk
- Option :
- GENERAL PURPOSE
- Connector Type :
- Receptacle, Male Pins
- Mating Alignment :
- With
- Termination :
- Solder
- Operating Supply Voltage :
- 250V
- Sealable :
- yes
- Total Number of Contacts :
- 37
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- IEC Conformance :
- No
- Contact Gender :
- Male
- Fastening Type :
- Threaded
- Mount :
- Panel
- Published :
- 2009
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Mounting Feature :
- Flange
- Mixed Contacts :
- No
- Shielding :
- Unshielded
- Filter Feature :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Number of Power Positions :
- 0
- ELV :
- Compliant
- Number of Positions :
- 37
- Pbfree Code :
- yes
- Series :
- CPC Series 1
- Voltage - Rated :
- 250VAC/DC
- Color :
- Black
- Orientation :
- Keyed
- Shell Material :
- Thermoplastic
- Contact Finish - Mating :
- Tin
- Backshell Type :
- Solid
- Datasheets
- 796406-4
Receptacle, Male Pins Thermoplastic Panel Mount, Through Hole, Right Angle 37 Positions Solder Tin Bulk Keyed Threaded
796406-4 Overview
The product is packaged in Receptacle, Male Pins.This device is mounted in the Panel Mount, Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the CPC Series 1 Series.Part Panel is mounted to the part.As a result, the device runs at -55°C~105°C Operating Temperature.
796406-4 Features
CPC Series 1 series
796406-4 Applications
There are a lot of TE Connectivity AMP Connectors
796406-4 Circular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
