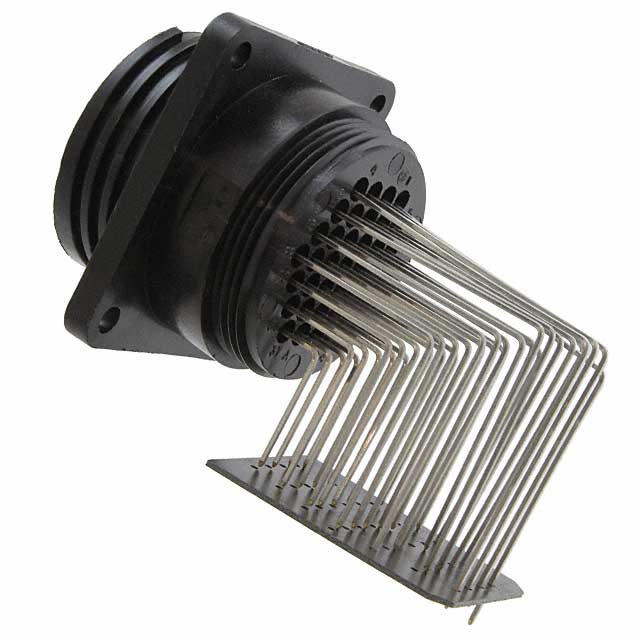

796406-1
Or copy the link below:
- Mfr.Part #
- 796406-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MALE 37POS GOLD SOLDER
- Stock
- 80
- In Stock ：
- 80
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Assemblies
- Packaging :
- Tray
- Factory Lead Time :
- 8 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Threaded
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Series :
- CPC Series 1
- Total Number of Contacts :
- 37
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Operating Temperature :
- -55°C~105°C
- Shell Size - Insert :
- 23-37
- Sealable :
- yes
- Flammability Rating :
- UL94 V-0
- Contact Gender :
- Male
- IEC Conformance :
- No
- Orientation :
- A
- Material Flammability Rating :
- UL94 V-0
- Housing Color :
- Black
- Empty Shell :
- No
- Mounting Feature :
- Flange
- Depth :
- 44.45mm
- Backshell Type :
- Solid
- Current Rating :
- 13A
- MIL Conformance :
- No
- Pbfree Code :
- No
- Assembly Length :
- 71.882mm
- ELV :
- Non-Compliant
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Length :
- 71.88mm
- Mating Alignment :
- With
- Published :
- 2009
- DIN Conformance :
- No
- Termination :
- Solder
- Number of Power Positions :
- 0
- Mount :
- Panel
- Number of Positions :
- 37
- Contact Finish - Mating :
- Gold
- Operating Supply Voltage :
- 250V
- Contact Material :
- Brass
- Shell Material :
- Thermoplastic
- Mixed Contacts :
- No
- Voltage - Rated :
- 250VAC/DC
- Connector Type :
- Receptacle, Male Pins
- RoHS Status :
- Non-RoHS Compliant
- Filter Feature :
- No
- Radiation Hardening :
- No
- Datasheets
- 796406-1
Receptacle, Male Pins Thermoplastic Panel Mount, Through Hole, Right Angle 37 Positions Solder Gold Tray A Threaded
796406-1 Overview
Packaging is Receptacle, Male Pins.Panel Mount, Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the CPC Series 1 Series, it can be found in this category.In this case, Panel mounts the part.The device is operating at -55°C~105°C Operating Temperature.
796406-1 Features
CPC Series 1 series
796406-1 Applications
There are a lot of TE Connectivity AMP Connectors
796406-1 Circular Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
