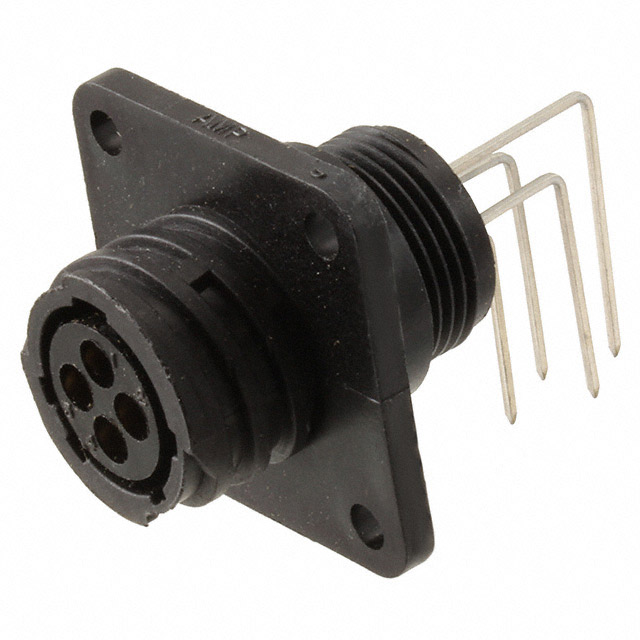

796407-1
Or copy the link below:
- Mfr.Part #
- 796407-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 4POS GOLD SOLDER
- Stock
- 35,430
- In Stock ：
- 35,430
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Assemblies
- Mount :
- Panel
- Assembly Length :
- 44.45mm
- Number of Positions :
- 4
- Connector Type :
- Receptacle, Female Sockets
- Sealable :
- No
- Shell Size - Insert :
- 11-4
- Empty Shell :
- No
- RoHS Status :
- Non-RoHS Compliant
- Filter Feature :
- No
- ECCN Code :
- EAR99
- ELV :
- Compliant
- Factory Lead Time :
- 8 Weeks
- Termination :
- Solder
- Lead Free :
- Contains Lead
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Option :
- GENERAL PURPOSE
- Backshell Type :
- Solid
- Fastening Type :
- Threaded
- Insulation Material :
- Plastic
- Current Rating :
- 13A
- IEC Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Orientation :
- Keyed
- Mixed Contacts :
- No
- Published :
- 2005
- Number of Power Positions :
- 0
- Contact Finish - Mating :
- Gold
- Total Number of Contacts :
- 4
- Operating Temperature :
- -55°C~105°C
- MIL Conformance :
- No
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Voltage - Rated :
- 250VAC/DC
- Contact Material :
- Brass
- Mating Alignment :
- With
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Color :
- Black
- DIN Conformance :
- No
- Packaging :
- Tray
- Mounting Feature :
- Flange
- Plating Thickness :
- 762 nm
- Series :
- CPC Series 1
- Operating Supply Voltage :
- 250V
- Pbfree Code :
- No
- Shell Material :
- Thermoplastic
- Datasheets
- 796407-1
Receptacle, Female Sockets Thermoplastic Panel Mount, Through Hole, Right Angle 4 Positions Solder Gold Tray Keyed Threaded
796407-1 Overview
This product is packaged in a Receptacle, Female Sockets box.Panel Mount, Through Hole, Right Angle indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the CPC Series 1 Series.By Panel, the part is mounted.Operating temperature is set to -55°C~105°C.
796407-1 Features
CPC Series 1 series
796407-1 Applications
There are a lot of TE Connectivity AMP Connectors
796407-1 Circular Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
