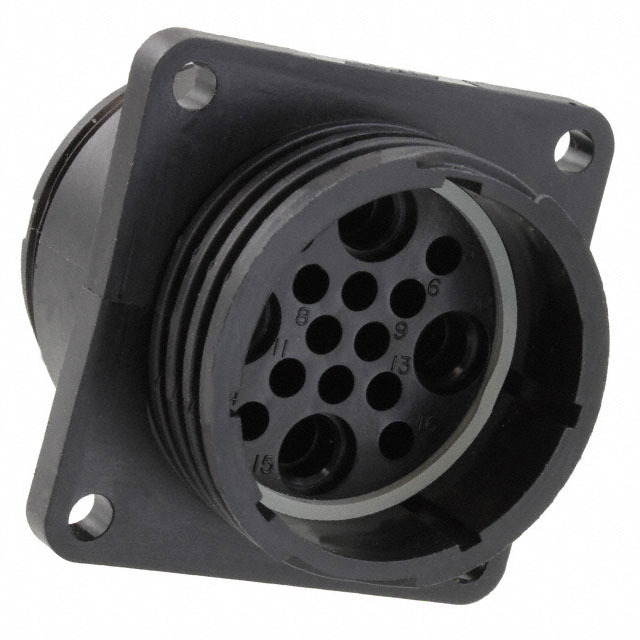

796466-1
Or copy the link below:
- Mfr.Part #
- 796466-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG MALE 16POS PNL MT
- Stock
- 910
- In Stock ：
- 910
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Housings
- Mount :
- Panel
- Lead Free :
- Lead Free
- Factory Lead Time :
- 11 Weeks
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- RoHS Status :
- RoHS Compliant
- Operating Supply Voltage :
- 600V
- Connector Type :
- Receptacle Housing
- Shell Material :
- Polyamide (PA), Nylon
- Note :
- Contacts Not Included
- Fastening Type :
- Threaded
- Sealable :
- yes
- Number of Signal Positions :
- 12
- Number of Positions :
- 16 (12 + 4 Power)
- Packaging :
- Bulk
- Mounting Feature :
- Flange
- Depth :
- 44.45mm
- Operating Temperature :
- -50°C~125°C
- Orientation :
- Keyed
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Housing Color :
- Black
- Shell Size - Insert :
- 23-16
- Mounting Type :
- Panel Mount
- Number of Power Positions :
- 4
- Number of Contacts :
- 16
- Type :
- For Male Pins
- Contact Gender :
- Male
- VDE Tested :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mating Retention :
- With
- Flammability Rating :
- UL94 V-0
- Material Flammability Rating :
- UL94 V-0
- Contact Size :
- 16 12 8 Power 4
- Ratings :
- Dust Tight, IP67, Waterproof
- Shielding :
- Unshielded
- Series :
- CPC Series 6
- Contact Type :
- Crimp
- Published :
- 2007
- Housing Material :
- Nylon
- Contact Shape :
- Circular
- ELV :
- Compliant
- Length :
- 41.28mm
- Datasheets
- 796466-1
Receptacle Housing Polyamide (PA), Nylon Panel Mount 16 (12 + 4 Power) Positions Bulk Threaded Unshielded Contacts Not Included CPC Series 6
796466-1 Overview
Packaging for this item is Receptacle Housing.There is a mounting type of Panel Mount for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the CPC Series 6 Series.There are many benefits associated with this part that are shared with other For Male Pins products.This part requires a Panel socket for mounting.
796466-1 Features
CPC Series 6 series
796466-1 Applications
There are a lot of TE Connectivity AMP Connectors
796466-1 Circular Connectors applications.
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
