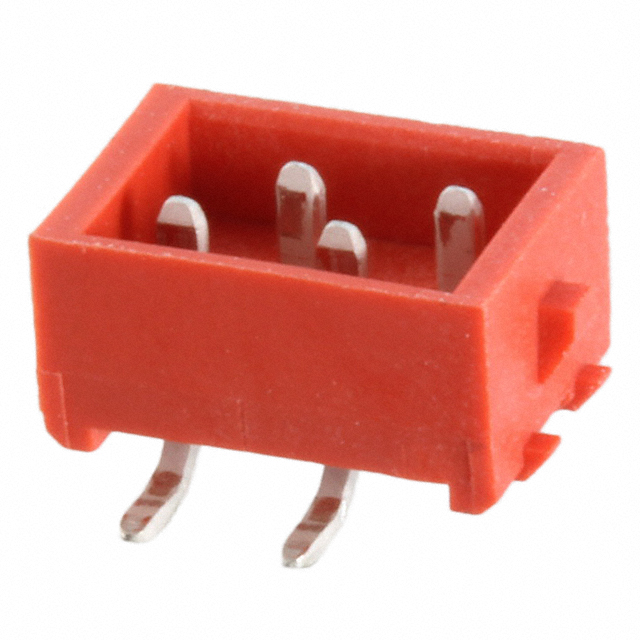

7-338728-4

Share

Or copy the link below:

Mfr.Part #
7-338728-4
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN HEADER SMD 4POS 2.54MM
Stock
5,996
In Stock :
5,996

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Male Pins
Packaging :
Tape and Reel (TR)
Operating Temperature :
-40°C~105°C
Number of Positions :
4
Contact Finish Thickness - Mating :
118.1μin 3.00μm
Pitch - Mating :
0.100 2.54mm
Feature :
Pick and Place
Termination :
Solder
Length :
8.2804mm
Published :
2008
Mounting Type :
Surface Mount
Fastening Type :
Latch Lock
Contact Type :
Male Pin
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Radiation Hardening :
No
RoHS Status :
RoHS Compliant
Insulation Resistance :
1GOhm
Row Spacing :
1.5 mm
MIL Conformance :
No
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
Factory Lead Time :
16 Weeks
Lead Free :
Lead Free
Voltage - Rated :
230V
Material Flammability Rating :
UL94 V-0
Housing Color :
Red
Orientation :
Vertical
Contact Finish - Mating :
Tin
Current Rating :
1A
Style :
Board to Board or Cable
Series :
Micro-MaTch
Filter Feature :
No
Contact Shape :
RECTANGULAR
Applications :
GENERAL PURPOSE
Operating Supply Voltage :
100V
Insulation Material :
Polyamide (PA46), Nylon 4/6, Glass Filled
Total Number of Contacts :
4
Mixed Contacts :
No
Housing Material :
Polyester
Connector Type :
Header
Contact Current Rating :
1.5A
Contact Material :
Brass
Contact Resistance :
10MOhm
DIN Conformance :
No
Insulation Height :
0.181 4.60mm
Mount :
Surface Mount
IEC Conformance :
No
Number of Rows :
2
Number of Positions Loaded :
All
Shrouding :
Shrouded - 4 Wall
Depth :
5.15mm
PCB Thickness :
1.6mm
ELV :
Compliant
Height :
4.6mm
Mating Connector Lock :
Without
Flammability Rating :
UL94 V-0
Datasheets
7-338728-4
Introducing Headers, Male Pins TE Connectivity AMP Connectors 7-338728-4 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-40°C~105°C, Mounting Type:Surface Mount, 7-338728-4 pinout, 7-338728-4 datasheet PDF, 7-338728-4 amp .Beyond Headers, Male Pins TE Connectivity AMP Connectors 7-338728-4 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 7-338728-4


Micro-MaTch Series 2-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA46), Nylon 4/6, Glass Filled 4-Position Board to Board or Cable 0.181 4.60mm Height

7-338728-4 Overview


A Header package is included with it.Its mounting type is Surface Mount.Packaging is performed using a Tape & Reel (TR) case.It is part of the Micro-MaTch Series of products.It is possible for the device to be used for the application General Purpose.A number of features make it more powerful because of its Pick and Place feature.Surface Mount mounts the part.A voltage of 100V is required to operate this memory.There is no operating temperature for the device.

7-338728-4 Features


Micro-MaTch series


7-338728-4 Applications


There are a lot of TE Connectivity AMP Connectors
7-338728-4 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
