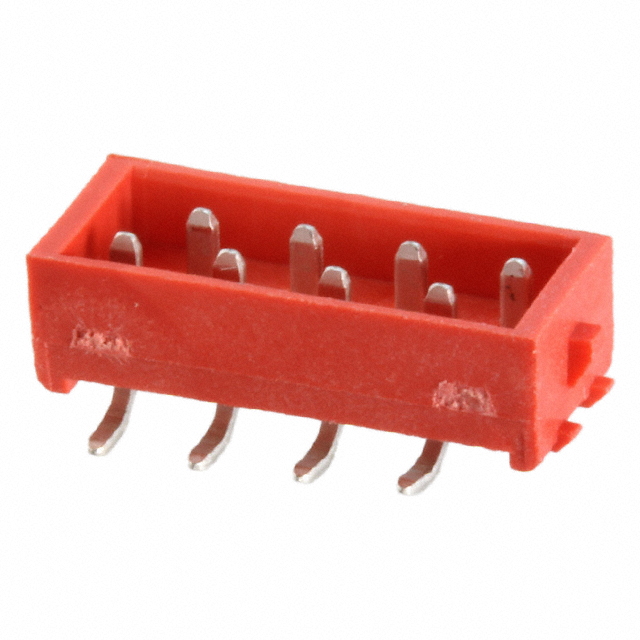

7-338728-8
Or copy the link below:
- Mfr.Part #
- 7-338728-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 8POS 2.54MM
- Stock
- 908
- In Stock ：
- 908
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Finish - Post :
- Tin
- Operating Supply Voltage :
- 100V
- Number of Contacts :
- 8
- Insulation Color :
- Red
- Published :
- 2008
- Orientation :
- Vertical
- PCB Mount Retention :
- Without
- Height :
- 4.6mm
- Factory Lead Time :
- 21 Weeks
- Contact Plating :
- Tin
- Fastening Type :
- Latch Lock
- ELV :
- Compliant
- PCB Mounting Orientation :
- Vertical
- Termination :
- Solder
- Depth :
- 5.15mm
- Pitch :
- 1.27mm
- Mounting Type :
- Surface Mount
- Feature :
- Pick and Place
- Number of Positions :
- 8
- Contact Shape :
- RECTANGULAR
- Color :
- Red
- Connector Type :
- Header
- Number of Rows :
- 2
- Series :
- Micro-MaTch
- Row Spacing :
- 1.5 mm
- PCB Thickness :
- 1.6mm
- Radiation Hardening :
- No
- Style :
- Board to Board or Cable
- Insulation Material :
- Polyamide (PA46), Nylon 4/6, Glass Filled
- Voltage - Rated :
- 230V
- RoHS Status :
- RoHS Compliant
- Number of Positions Loaded :
- All
- Housing Material :
- Polyester
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Current Rating (Amps) :
- 1.5A
- Contact Current Rating :
- 1.5A
- Applications :
- GENERAL PURPOSE
- Contact Finish - Mating :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Tape and Reel (TR)
- Shrouding :
- Shrouded - 4 Wall
- Contact Type :
- Male Pin
- Insulation Height :
- 0.181 4.60mm
- Mount :
- Surface Mount
- Operating Temperature :
- -40°C~105°C
- Min Operating Temperature :
- -40°C
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Resistance :
- 10MOhm
- Contact Material :
- Brass
- Pitch - Mating :
- 0.100 2.54mm
- Current Rating :
- 1A
- Mating Connector Lock :
- Without
- Flammability Rating :
- UL94 V-0
- Length :
- 13.4mm
- Max Operating Temperature :
- 105°C
- Housing Color :
- Red
- Insulation Resistance :
- 1GOhm
- Datasheets
- 7-338728-8
Micro-MaTch Series 2-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA46), Nylon 4/6, Glass Filled 8-Position Board to Board or Cable 0.181 4.60mm Height
7-338728-8 Overview
This product is packaged in a Header box.Surface Mount indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the Micro-MaTch Series.Use it below 105°C.A minimum temperature of -40°C must be maintained for the operation of this device.There is the possibility of using the device for General Purpose.In many ways, Pick and Place makes it more powerful.By Surface Mount, the part is mounted.The operating voltage of this memory is 100V.Operating temperature is set to -40°C~105°C.
7-338728-8 Features
Micro-MaTch series
7-338728-8 Applications
There are a lot of TE Connectivity AMP Connectors
7-338728-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
