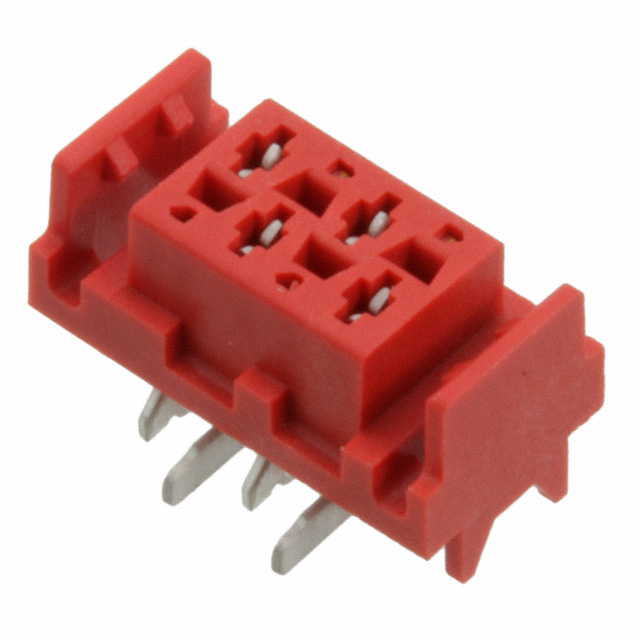

7-338069-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Receptacles, Female Sockets

Feature :

Pick and Place

Color :

Red

Mount :

Surface Mount

Number of Contacts :

4

Lead Pitch :

1.27mm

Contact Material :

Phosphor Bronze

Operating Temperature :

-40°C~105°C

Insulation Height :

0.209 5.30mm

Number of Positions :

4

Number of Positions Loaded :

All

Series :

Micro-MaTch

Contact Resistance :

10MOhm

Contact Finish - Post :

Tin

Min Operating Temperature :

-30°C

Row Spacing - Mating :

0.100 (2.54mm)

PCB Mounting Orientation :

Vertical

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

RoHS Compliant

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Insulation Resistance :

1GOhm

Factory Lead Time :

23 Weeks

Contact Finish - Mating :

Tin

Gender :

Receptacle

Voltage - Rated :

100Vdc

Operating Supply Voltage :

100V

Contact Plating :

Tin

Fastening Type :

Friction Lock

Contact Gender :

FEMALE

Packaging :

Tape and Reel (TR)

Mating Connector Lock :

Without

Applications :

Automotive, General Purpose

Published :

2004

Current Rating :

1.5A

Length :

9.6774mm

Height :

6.9mm

PCB Thickness :

1.6mm

PCB Mount Retention :

Without

Number of Rows :

2

Termination :

Solder

Depth :

5mm

Contact Current Rating :

1.4A

Pitch :

1.27mm

Insulation Material :

Polyamide (PA46), Nylon 4/6, Glass Filled

Insulation Color :

Red

Housing Material :

Polyamide

Max Operating Temperature :

85°C

Style :

Board to Board or Cable

Pitch - Mating :

0.100 2.54mm

Mounting Type :

Surface Mount

Housing Color :

Red, Black

Material Flammability Rating :

UL94 V-0

REACH SVHC :

No SVHC

Flammability Rating :

UL94 V-0

Lead Length :

5.3mm

Material :

Polyester

Max Voltage Rating (DC) :

100V

Number of Pins :

4

Voltage - Rated AC :

230V

ELV :

Compliant

Orientation :

Vertical

Connector Type :

Receptacle

Contact Type :

Forked
