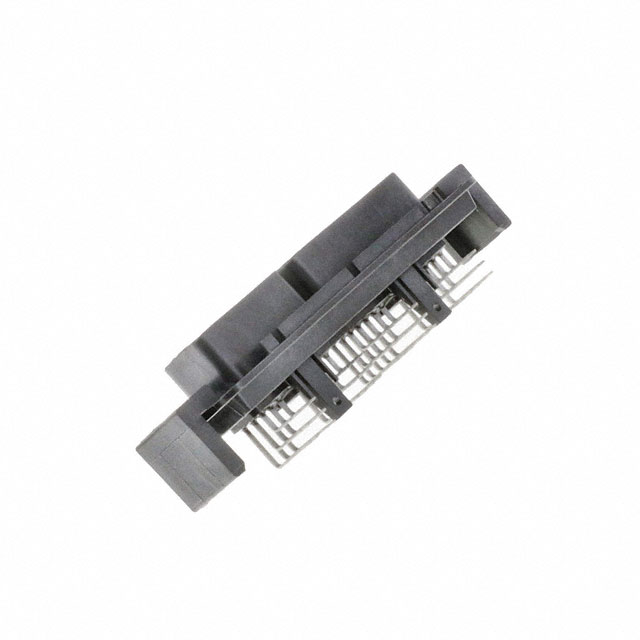

5810148005
Or copy the link below:
- Mfr.Part #
- 5810148005
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 48POS
- Stock
- 11,737
- In Stock ：
- 11,737
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- Headers, Male Pins
- Series :
- ModICE® SE
- Factory Lead Time :
- 12 Weeks
- Ingress Protection :
- IP67/69K - Dust Tight, Water Resistant, Waterproof
- Mixed Contacts :
- No
- Style :
- Board to Cable/Wire
- Published :
- 2006
- Contact Resistance :
- 10MOhm
- RoHS Status :
- RoHS Compliant
- Contact Material :
- Brass
- Pbfree Code :
- yes
- Insulation Color :
- Black
- Contact Finish - Mating :
- Tin
- Option :
- GENERAL PURPOSE
- Current Rating :
- 10A
- DIN Conformance :
- No
- IEC Conformance :
- No
- Operating Temperature :
- -40°C~85°C
- Applications :
- Automotive
- Termination :
- Solder
- MIL Conformance :
- No
- JESD-609 Code :
- e3
- Shell Material :
- GLASS FILLED POLYMER
- Empty Shell :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- Number of Positions Loaded :
- All
- Contact Type :
- Male Pin
- Contact Length - Post :
- 0.126 3.20mm
- Contact Shape :
- Circular
- Number of Rows :
- 3
- Mounting Type :
- Through Hole, Right Angle
- Insulation Material :
- Polymer, Glass Filled
- Connector Type :
- Header
- Filter Feature :
- No
- Packaging :
- Bulk
- Fastening Type :
- Threaded
- Number of Positions :
- 48
- Shrouding :
- Shrouded - 4 Wall
- Insulation Resistance :
- 1GOhm
- Datasheets
- 5810148005
5810148005 Documents
ModICE® SE Series 3-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polymer, Glass Filled 48-Position Board to Cable/Wire
5810148005 Overview
A Header package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Bulk case.It is part of the ModICE® SE Series of products.It is possible for the device to be used for the application Automotive.There is no operating temperature for the device.
5810148005 Features
ModICE® SE series
5810148005 Applications
There are a lot of Cinch Connectivity Solutions
5810148005 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
