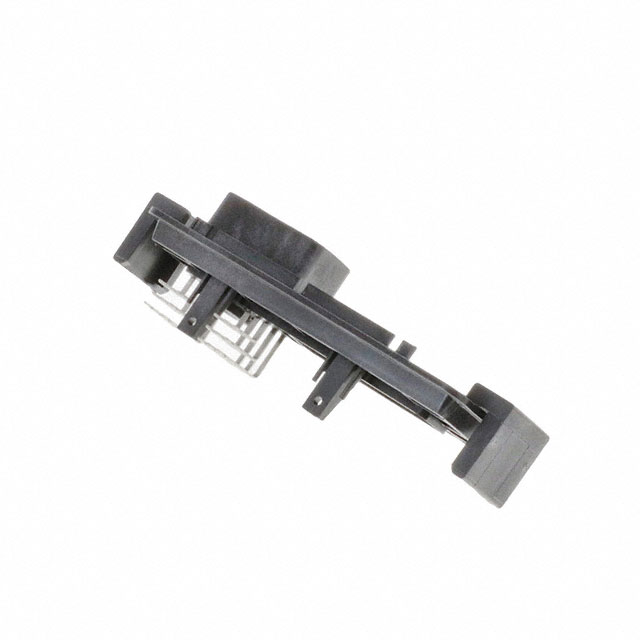

5810118032
Or copy the link below:
- Mfr.Part #
- 5810118032
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 18POS
- Stock
- 144
- In Stock ：
- 144
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- Headers, Male Pins
- JESD-609 Code :
- e3
- Shell Material :
- GLASS FILLED POLYMER
- Contact Length - Post :
- 0.126 3.20mm
- Contact Type :
- Male Pin
- Number of Positions :
- 18
- Insulation Color :
- Black
- IEC Conformance :
- No
- MIL Conformance :
- No
- Number of Rows :
- 3
- RoHS Status :
- RoHS Compliant
- Contact Shape :
- Circular
- Empty Shell :
- No
- DIN Conformance :
- No
- Ingress Protection :
- IP67/69K - Dust Tight, Water Resistant, Waterproof
- Contact Resistance :
- 10MOhm
- Contact Finish - Mating :
- Tin
- Number of Positions Loaded :
- All
- Published :
- 2006
- Filter Feature :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -40°C~85°C
- Insulation Material :
- Polymer, Glass Filled
- Fastening Type :
- Threaded
- Factory Lead Time :
- 12 Weeks
- Current Rating :
- 10A
- Mixed Contacts :
- No
- Insulation Resistance :
- 1GOhm
- Contact Material :
- Brass
- Connector Type :
- Header
- Packaging :
- Bulk
- Applications :
- Automotive
- Style :
- Board to Cable/Wire
- Shrouding :
- Shrouded - 4 Wall
- Option :
- GENERAL PURPOSE
- Pbfree Code :
- yes
- Series :
- ModICE® SE
- Termination :
- Solder
- Mounting Type :
- Through Hole, Right Angle
- Datasheets
- 5810118032
5810118032 Documents
ModICE® SE Series 3-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polymer, Glass Filled 18-Position Board to Cable/Wire
5810118032 Overview
Packaging for this item is Header.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the ModICE® SE Series.A possible application for the device is Automotive.In this case, the device operates at -40°C~85°C Operating Temperature.
5810118032 Features
ModICE® SE series
5810118032 Applications
There are a lot of Cinch Connectivity Solutions
5810118032 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
