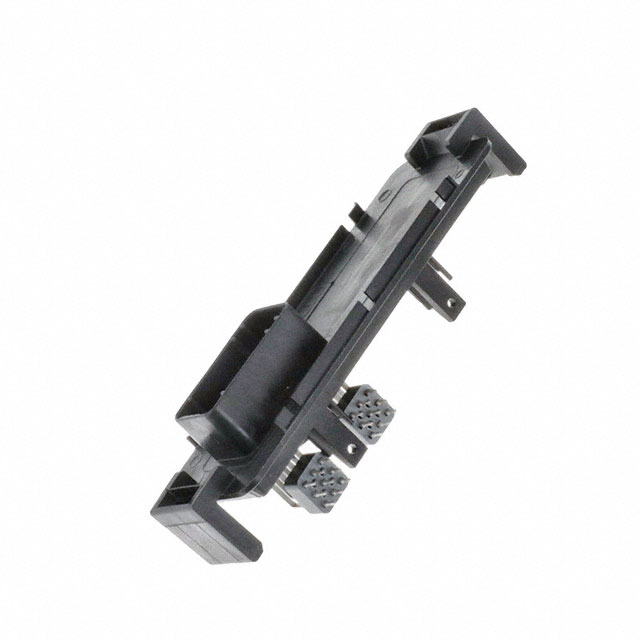

5810118033
Or copy the link below:
- Mfr.Part #
- 5810118033
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 18POS
- Stock
- 49,415
- In Stock ：
- 49,415
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- Headers, Male Pins
- Series :
- ModICE® SE
- Contact Material :
- Brass
- Number of Positions :
- 18
- Empty Shell :
- No
- Factory Lead Time :
- 13 Weeks
- Termination :
- Solder
- Operating Temperature :
- -40°C~85°C
- ECCN Code :
- EAR99
- Connector Type :
- Header
- Style :
- Board to Cable/Wire
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- MIL Conformance :
- No
- DIN Conformance :
- No
- Contact Finish - Mating :
- Tin
- Fastening Type :
- Threaded
- Filter Feature :
- yes
- Feature :
- Ferrite Filter
- RoHS Status :
- RoHS Compliant
- Mixed Contacts :
- No
- Applications :
- Automotive
- JESD-609 Code :
- e3
- Pbfree Code :
- yes
- Published :
- 2006
- Shell Material :
- GLASS FILLED POLYMER
- IEC Conformance :
- No
- Number of Rows :
- 3
- Ingress Protection :
- IP67/69K - Dust Tight, Water Resistant, Waterproof
- Mounting Type :
- Through Hole, Right Angle
- Shrouding :
- Shrouded - 4 Wall
- Insulation Color :
- Black
- Option :
- GENERAL PURPOSE
- Current Rating :
- 10A
- Contact Type :
- Male Pin
- Insulation Material :
- Polymer, Glass Filled
- Contact Length - Post :
- 0.126 3.20mm
- Packaging :
- Bulk
- Number of Positions Loaded :
- All
- Contact Shape :
- Circular
- Datasheets
- 5810118033
5810118033 Documents
ModICE® SE Series 3-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polymer, Glass Filled 18-Position Board to Cable/Wire
5810118033 Overview
The product comes in a package of Header.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the ModICE® SE Series.The device may be used for the following applications: Automotive.It is more powerful in many ways due to its Ferrite Filter feature.It operates at an operating temperature of -40°C~85°C.
5810118033 Features
ModICE® SE series
5810118033 Applications
There are a lot of Cinch Connectivity Solutions
5810118033 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
