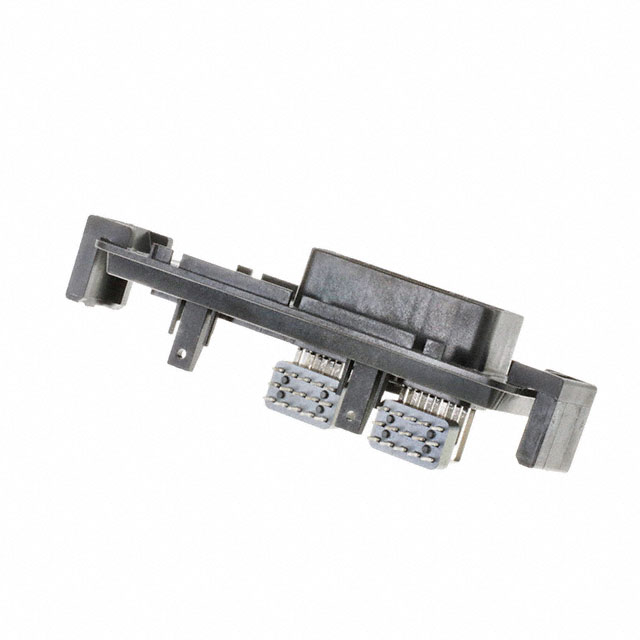

5810130046
Or copy the link below:
- Mfr.Part #
- 5810130046
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 30POS
- Stock
- 13,667
- In Stock ：
- 13,667
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- Headers, Male Pins
- Applications :
- Automotive
- Termination :
- Solder
- Pbfree Code :
- yes
- Contact Plating :
- Nickel
- ECCN Code :
- EAR99
- Contact Type :
- Male Pin
- Filter Feature :
- yes
- DIN Conformance :
- No
- Published :
- 2006
- Series :
- ModICE® SE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Feature :
- Ferrite Filter
- Mounting Type :
- Through Hole, Right Angle
- IEC Conformance :
- No
- RoHS Status :
- RoHS Compliant
- Empty Shell :
- No
- Insulation Color :
- Black
- Factory Lead Time :
- 13 Weeks
- Contact Finish - Mating :
- Tin
- Insulation Material :
- Polymer, Glass Filled
- Operating Temperature :
- -40°C~85°C
- Number of Rows :
- 3
- Mixed Contacts :
- No
- Contact Shape :
- Circular
- Number of Positions Loaded :
- All
- Contact Material :
- Brass
- JESD-609 Code :
- e3
- Connector Type :
- Header
- MIL Conformance :
- No
- Current Rating (Amps) :
- 10A
- Insulation Resistance :
- 1GOhm
- Option :
- GENERAL PURPOSE
- Number of Positions :
- 30
- Contact Resistance :
- 10MOhm
- Ingress Protection :
- IP67/69K - Dust Tight, Water Resistant, Waterproof
- Shrouding :
- Shrouded - 4 Wall
- Fastening Type :
- Threaded
- Contact Length - Post :
- 0.126 3.20mm
- Shell Material :
- GLASS FILLED POLYMER
- Style :
- Board to Cable/Wire
- Datasheets
- 5810130046
5810130046 Documents
ModICE® SE Series 3-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polymer, Glass Filled 30-Position Board to Cable/Wire
5810130046 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole, Right Angle.A Bulk case is used to package the product.A product of the ModICE® SE Series, it belongs to the range of products of that series.This device may be used for the purpose of Automotive.A number of features make the Ferrite Filter feature more powerful.-40°C~85°C Operating Temperature is the default operating temperature for the device.
5810130046 Features
ModICE® SE series
5810130046 Applications
There are a lot of Cinch Connectivity Solutions
5810130046 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
