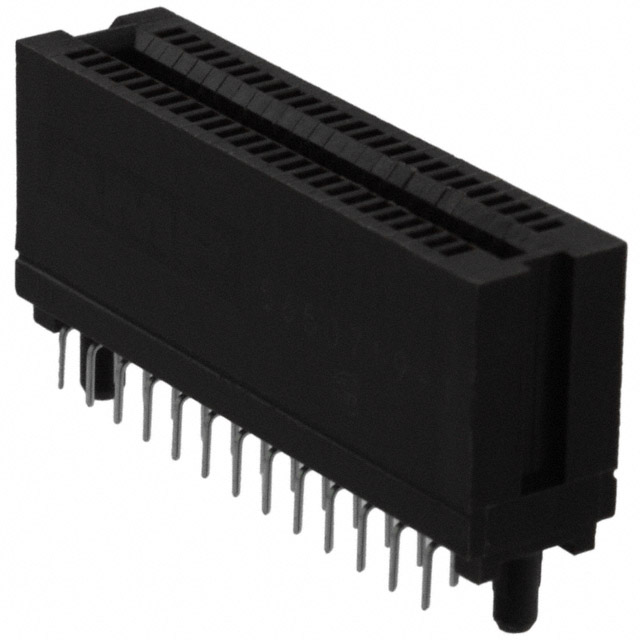

5650719-2
Or copy the link below:
- Mfr.Part #
- 5650719-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 50POS 0.100
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Orientation :
- Vertical
- Housing Material :
- Thermoplastic
- Number of Conductors :
- ONE
- ELV :
- Compliant
- Contact Material :
- Phosphor Bronze
- Contact Style :
- BELLOWED TYPE
- Contact Current Rating :
- 1A
- Number Of PCB Rows :
- 4
- RoHS Status :
- RoHS Compliant
- Published :
- 2005
- Plating Thickness :
- 760 nm
- Total Number of Contacts :
- 50
- Gender :
- FEMALE
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Body Length or Diameter :
- 1.48 inch
- Number of Positions :
- 50
- Mixed Contacts :
- No
- Underplate Material :
- Nickel
- Contact Plating :
- Tin, Gold
- Durability :
- 100 Cycles
- MIL Conformance :
- No
- DIN Conformance :
- No
- IEC Conformance :
- No
- Lead Length :
- 3.56mm
- Body Depth :
- 0.61 inch
- Termination :
- Solder, Staggered
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Series :
- Standard Edge II
- Read Out :
- Dual
- Pbfree Code :
- yes
- Insulation Resistance :
- 1000000000Ohm
- Reliability :
- COMMERCIAL
- Filter Feature :
- No
- Card Type :
- Non Specified - Dual Edge
- Color :
- Brown
- Operating Temperature :
- -55°C~ 85°C
- Option :
- GENERAL PURPOSE
- Number of Positions/Bay/Row :
- 25
- Rated Current (Signal) :
- 1A
- Circuit Application :
- Signal
- Contact Finish :
- Gold
- Contact Pattern :
- RECTANGULAR
- Reference Standard :
- CSA
- Packaging :
- Bulk
- Body Breadth :
- 0.35 inch
- Additional Feature :
- POLARIZED
- Material - Insulation :
- Polyester, Glass Filled
- Factory Lead Time :
- 15 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 0.100 2.54mm
- Feature :
- Board Guide
- Height :
- 13.97mm
- Mounting Type :
- Through Hole
- Connector Type :
- Connector, Receptacle, Socket
- Mount :
- Through Hole
- Length - Termination :
- 0.14 inch
- Current Rating :
- 1A
- Operating Supply Voltage :
- 203V
- Number of Rows :
- 2
- Card Thickness :
- 0.062 1.57mm
- Datasheets
- 5650719-2
