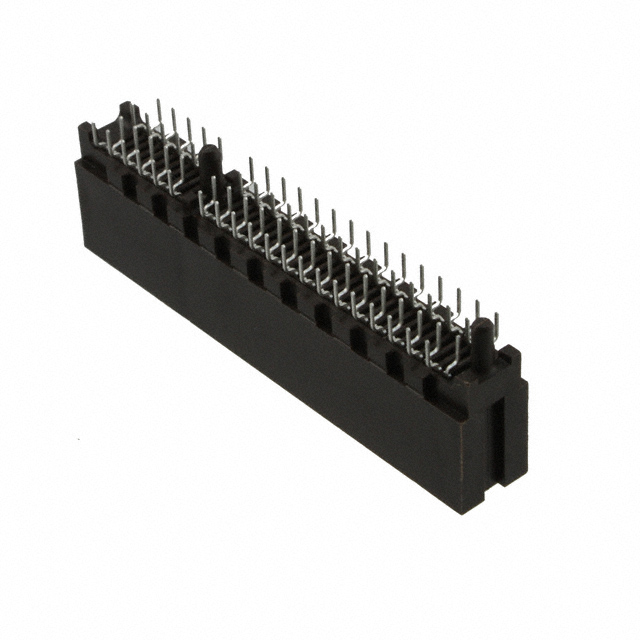

5650090-3
Or copy the link below:
- Mfr.Part #
- 5650090-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 80POS 0.050
- Stock
- 739
- In Stock ：
- 739
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Color :
- Brown
- Plating Thickness :
- 760 nm
- Operating Supply Voltage :
- 203V
- Pitch :
- 0.050 1.27mm
- Operating Temperature :
- -55°C~85°C
- Length :
- 59.44mm
- HTS Code :
- 8536.69.40.40
- Contact Pattern :
- RECTANGULAR
- Underplate Material :
- Nickel
- Contact Resistance :
- 30mOhm
- Contact Style :
- BELLOWED TYPE
- RoHS Status :
- RoHS Compliant
- Mixed Contacts :
- No
- Material - Insulation :
- Thermoplastic
- Gender :
- FEMALE
- Lead Length :
- 2.54mm
- Contact Plating :
- Gold, Tin
- Contact Finish :
- Gold
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Termination :
- Solder, Staggered
- Packaging :
- Bulk
- Body Breadth :
- 0.35 inch
- Orientation :
- Vertical
- Depth :
- 8.89mm
- Filter Feature :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Height :
- 13.97mm
- Number of Conductors :
- ONE
- DIN Conformance :
- No
- IEC Conformance :
- No
- Current Rating :
- 1A
- Card Thickness :
- 0.062 1.57mm
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Option :
- GENERAL PURPOSE
- Durability :
- 100 Cycles
- Number Of PCB Rows :
- 4
- Reliability :
- COMMERCIAL
- Read Out :
- Dual
- Card Type :
- Non Specified - Dual Edge
- Circuit Application :
- Signal
- Published :
- 2010
- Number of Positions :
- 80
- Dielectric Withstanding Voltage :
- 500VAC V
- Connector Type :
- Connector, Receptacle, Socket
- Feature :
- Board Guide
- Rated Current (Signal) :
- 1A
- REACH SVHC :
- Unknown
- Total Number of Contacts :
- 80
- JESD-609 Code :
- e3
- Factory Lead Time :
- 9 Weeks
- Mount :
- Through Hole
- Contact Material :
- Phosphor Bronze
- Width :
- 15.49mm
- Voltage - Rated :
- 203V
- Number of Positions/Bay/Row :
- 11; 29
- Number of Rows :
- 2
- Insulation Resistance :
- 1000000000Ohm
- Series :
- Standard Edge .050
- Mounting Type :
- Through Hole
- MIL Conformance :
- No
- Reference Standard :
- CSA
- ECCN Code :
- EAR99
- Max Voltage Rating (AC) :
- 203V
- Pbfree Code :
- yes
- Contact Current Rating :
- 1A
- Radiation Hardening :
- No
- Datasheets
- 5650090-3
