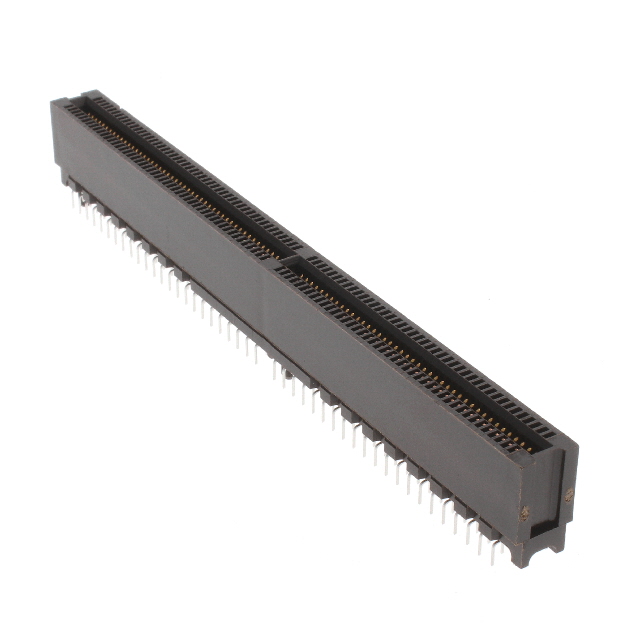

5650092-1
Or copy the link below:
- Mfr.Part #
- 5650092-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 182POS 0.050
- Stock
- 18
- In Stock ：
- 18
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Rated Current (Signal) :
- 1A
- Color :
- Brown
- Number of Conductors :
- ONE
- Insulation Resistance :
- 1000000000Ohm
- Underplate Material :
- Nickel
- Reliability :
- COMMERCIAL
- Number of Positions :
- 182
- Published :
- 2005
- Lead Length :
- 2.54mm
- Material - Insulation :
- Thermoplastic
- Plating Thickness :
- 760 nm
- JESD-609 Code :
- e3
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Pattern :
- RECTANGULAR
- Orientation :
- Vertical
- Length - Termination :
- 0.1 inch
- Contact Current Rating :
- 1A
- MIL Conformance :
- No
- Contact Resistance :
- 30mOhm
- Option :
- GENERAL PURPOSE
- Body Length or Diameter :
- 4.89 inch
- Card Type :
- Non Specified - Dual Edge
- Connector Type :
- Connector, Receptacle, Socket
- Height :
- 13.97mm
- ELV :
- Compliant
- IEC Conformance :
- No
- Circuit Application :
- Signal
- Filter Feature :
- No
- Card Thickness :
- 0.062 1.57mm
- Additional Feature :
- POLARIZED
- Max Operating Temperature :
- 85°C
- Mounting Type :
- Through Hole
- Number Of PCB Rows :
- 4
- Mount :
- Through Hole
- Pitch :
- 0.050 1.27mm
- Factory Lead Time :
- 11 Weeks
- Mixed Contacts :
- No
- RoHS Status :
- RoHS Compliant
- Packaging :
- Bulk
- Gender :
- FEMALE
- Termination :
- Solder, Staggered
- Dielectric Withstanding Voltage :
- 500VAC V
- Min Operating Temperature :
- -55°C
- Contact Plating :
- Tin, Gold
- Total Number of Contacts :
- 182
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Contact Style :
- BELLOWED TYPE
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Operating Supply Voltage :
- 203V
- HTS Code :
- 8536.69.40.40
- Series :
- Standard Edge .050
- Number of Rows :
- 2
- Durability :
- 100 Cycles
- Contact Finish :
- Gold
- Body Breadth :
- 0.35 inch
- Read Out :
- Dual
- Reference Standard :
- CSA
- Contact Material :
- Phosphor Bronze
- Body Depth :
- 0.61 inch
- Feature :
- Board Guide
- Lead Free :
- Lead Free
- Current Rating :
- 1A
- DIN Conformance :
- No
- Datasheets
- 5650092-1
