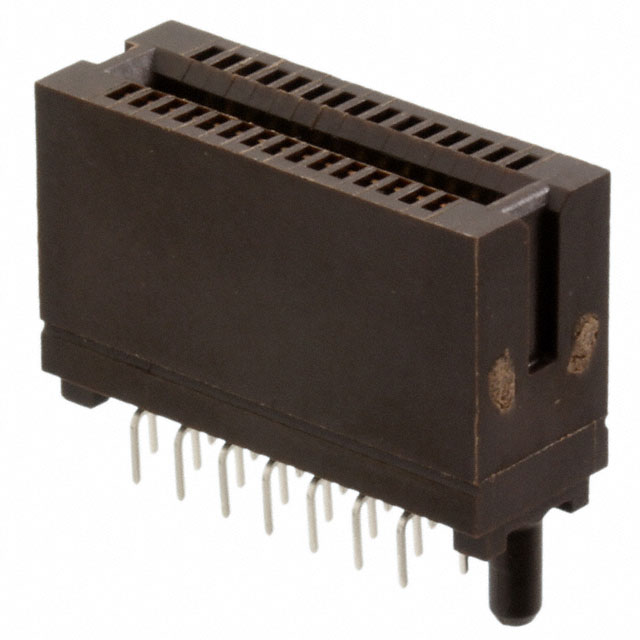

5650712-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Edgeboard Connectors

Pitch :

1.2700 mm

Series :

5650712

Number of Contact Rows :

2

Gender :

FEMALE

Number of Positions :

30

Mount :

Through Hole

Brand :

TE Connectivity

ELV :

Compliant

Circuit Application :

Signal

Contact Pattern :

RECTANGULAR

Body/Shell Style :

Receptacle

Total Number of Contacts :

30

Terminal Pitch :

1.27 mm

Type :

Card Edge

Mounting :

Through Hole

MIL Conformance :

No

Pbfree Code :

yes

Contact Style :

BELLOWED TYPE

Operating Temp Range :

-55C to 85C

Lifecycle Status :

Production (Last Updated: 6 days ago)

Contact Resistance :

20 mΩ

Reach Compliance Code :

Compliant

PCB Mounting Orientation :

Vertical

IEC Conformance :

No

Rated Current (Signal) :

1 A

Durability :

100 Cycles

Orientation :

Vertical

PCB Contact Row Spacing :

2.54 mm

Contact Material :

NOT SPECIFIED

Color :

Brown

Body Breadth :

0.35 inch

Body Orientation :

Straight

Factory Lead Time :

6 Weeks, 3 Days

PCB Contact Pattern :

STAGGERED

Insulation Material :

Thermoplastic

Terminal Length :

0.1 inch

Insertion Force-Max :

2.224 N

Packaging :

Box

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 6 days ago)

Housing Material :

Thermoplastic

Option :

GENERAL PURPOSE

Mounting Style :

Straight

Product Type :

Standard Card Edge Connectors

Operating Supply Voltage :

203 V

Additional Feature :

POLARIZED

Mounting Type :

BOARD

Height :

13.97 mm

Mating Contact Pitch :

0.05 inch

Contact Plating :

Gold

Underplate Material :

Nickel

Withdrawl Force-Min :

.278 N

Radiation Hardening :

No

Termination :

Solder

Product Height (mm) :

15.49(mm)

Plating Thickness :

30u inch

Insulation Resistance :

1000000000 Ω

DIN Conformance :

No

Current Rating (Max) :

1/Contact(A)

Lead Length :

2.54 mm

Dielectric Withstanding Voltage :

500VAC V

Termination Method :

Solder

Board Mounting Option :

PEG

Current Rating :

1 A

Base/Housing Material :

Thermoplastic

Product Category :

Standard Card Edge Connectors

Reliability :

COMMERCIAL

Contact Current Rating :

1 A

Brand Name :

AMP

Body Depth :

0.61 inch

Termination Type :

Solder

Max Operating Temperature :

85 °C

Number of Contacts :

30 POS

Housing Color :

Brown

Pitch (mm) :

1.27(mm)

Connector Type :

CARD EDGE CONNECTOR

Card Thickness (mm) :

1.57(mm)

Reference Standard :

CSA

Filter Feature :

No

Number Of PCB Rows :

4

Min Operating Temperature :

-55 °C

Insulator Color :

Brown

Card Thickness :

1.57 mm

Mixed Contacts :

No

Contact Gender :

FEMALE

Number of Rows :

2

RoHS :

Details
