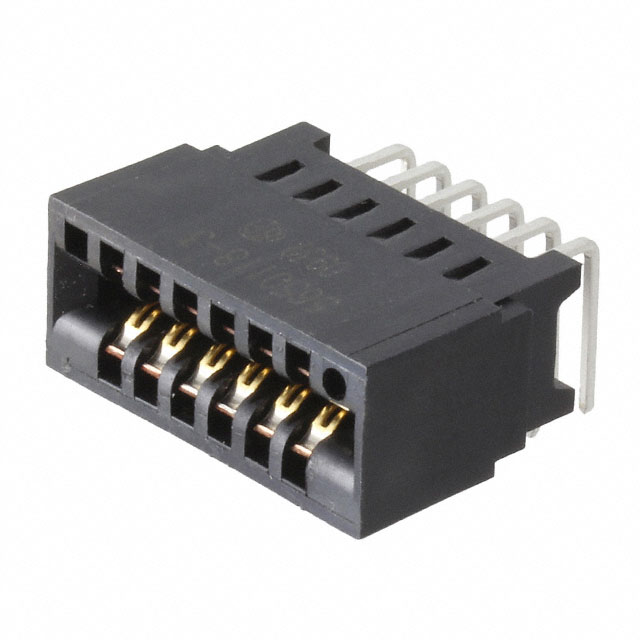

5650118-3
Or copy the link below:
- Mfr.Part #
- 5650118-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 12POS 0.100
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Plating :
- Gold
- Flammability Rating :
- UL94 V-0
- Contact Current Rating :
- 3A
- Factory Lead Time :
- 16 Weeks
- Contact Material :
- Phosphor Bronze
- Color :
- Black
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Plating :
- Tin, Gold
- Number of Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Power Positions :
- 12
- Termination :
- Solder
- Connector Type :
- Socket
- Voltage - Rated :
- 400V
- Series :
- Standard Edge II
- Max Current Rating :
- 3A
- Height :
- 15.57mm
- Max Operating Temperature :
- 85°C
- Packaging :
- Tray
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Card Thickness :
- 0.054 ~ 0.070 1.37mm ~ 1.78mm
- Operating Temperature :
- -55°C~ 85°C
- Circuit Application :
- Power
- Housing Color :
- Black
- Housing Material :
- Polyester
- Read Out :
- Dual
- Underplate Material :
- Nickel
- Card Type :
- Non Specified - Dual Edge
- ELV :
- Compliant
- Mount :
- Through Hole
- Published :
- 2005
- Gender :
- FEMALE
- Plating Thickness :
- 760 nm
- Min Operating Temperature :
- -55°C
- PCB Mounting Orientation :
- RIGHT ANGLE
- Row Spacing :
- 4.85 mm
- Material - Insulation :
- Polyester, Glass Filled
- Orientation :
- RIGHT ANGLE
- Contact Finish :
- Gold
- Mounting Type :
- Through Hole, Right Angle
- Pitch :
- 0.100 2.54mm
- Number of Positions :
- 12
- Number of Contacts :
- 12
- RoHS Status :
- RoHS Compliant
- Operating Supply Voltage :
- 400V
- Datasheets
- 5650118-3
