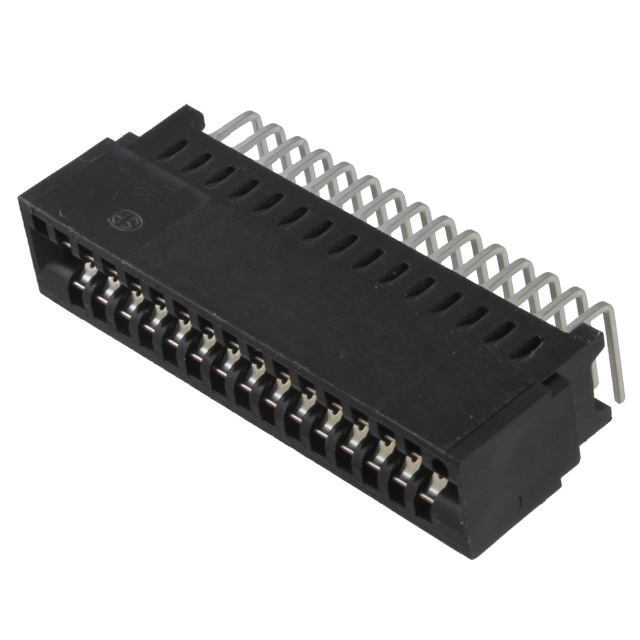

5650118-1
Or copy the link below:
- Mfr.Part #
- 5650118-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 30POS 0.100
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Underplate Material :
- Nickel
- Operating Supply Voltage :
- 400V
- Mounting Type :
- Through Hole, Right Angle
- Plating :
- Gold
- Circuit Application :
- Power
- Published :
- 2004
- Connector Type :
- Socket
- Min Operating Temperature :
- -55°C
- ELV :
- Compliant
- Max Current Rating :
- 3A
- Contact Material :
- Phosphor Bronze
- Gender :
- FEMALE
- RoHS Status :
- RoHS Compliant
- Card Type :
- Non Specified - Dual Edge
- Read Out :
- Dual
- Card Thickness :
- 0.054 ~ 0.070 1.37mm ~ 1.78mm
- Plating Thickness :
- 760 nm
- Contact Finish :
- Gold
- Operating Temperature :
- -55°C~ 85°C
- Mount :
- Through Hole
- Material - Insulation :
- Polyester, Glass Filled
- Height :
- 17.018mm
- Pitch :
- 0.100 2.54mm
- Number of Rows :
- 2
- Contact Finish Thickness :
- 30.0μin 0.76μm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Color :
- Black
- Max Operating Temperature :
- 85°C
- Termination :
- Solder
- Contact Current Rating :
- 3A
- Number of Positions :
- 30
- Contact Plating :
- Tin, Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tray
- Factory Lead Time :
- 11 Weeks
- Housing Color :
- Black
- Series :
- Standard Edge II
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Polyester
- Voltage - Rated :
- 400V
- Number of Contacts :
- 30
- Number of Power Positions :
- 30
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Orientation :
- RIGHT ANGLE
- Datasheets
- 5650118-1
