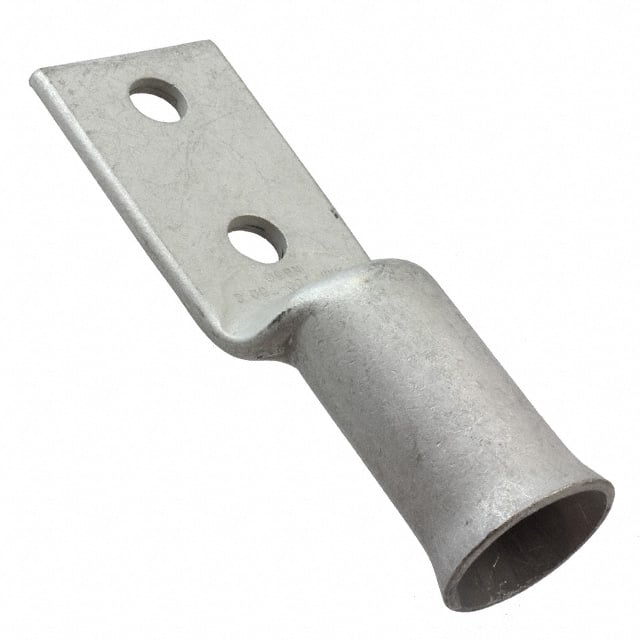

53686-2
Or copy the link below:
- Mfr.Part #
- 53686-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN TERM RECT 700 MCM #1/2
- Stock
- 12
- In Stock ：
- 12
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connectors
- Diameter - Barrel ID :
- 1.162 (29.51mm)
- Series :
- Ampower
- HTS Code :
- 8536.90.40.00
- Stud Diameter :
- 14.2748 mm
- Stud Size :
- M12
- Contact Finish :
- Tin
- Pbfree Code :
- yes
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Wire Gauge :
- 700MCM (kcmil)
- Diameter - Barrel OD :
- 1.700 (43.18mm)
- Lead Free :
- Lead Free
- Length :
- 161.29mm
- Terminal Style :
- Two Stud Holes
- Terminal and Terminal Block Type :
- WIRE TERMINAL
- Published :
- 2004
- Termination :
- Crimp, Barrel
- Tab Thickness :
- 0.240 6.10mm
- Contact Material :
- Copper
- Insulation :
- Non-Insulated
- Material Thickness :
- 2.794mm
- Width - Outer Edges :
- 2.120 53.84mm
- RoHS Status :
- RoHS Compliant
- Plating Thickness :
- 3.81μm
- Length - Overall :
- 6.350 161.29mm
- Terminal Type :
- Standard
- Diameter - Inside :
- 29.51 mm
- Factory Lead Time :
- 17 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- Diameter - Ring ID :
- 0.562 (14.27mm)
- Number of Holes :
- 2
- Stud/Tab Size :
- 1/2 Stud
- Tongue Thickness :
- 6.1mm
- Terminal Gender :
- FEMALE
- ELV :
- Compliant
- Heavy Duty :
- No
- Mounting Type :
- Free Hanging (In-Line)
- Packaging :
- Bulk
- Datasheets
- 53686-2
53686-2 datasheet pdf and Terminals - Rectangular Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
