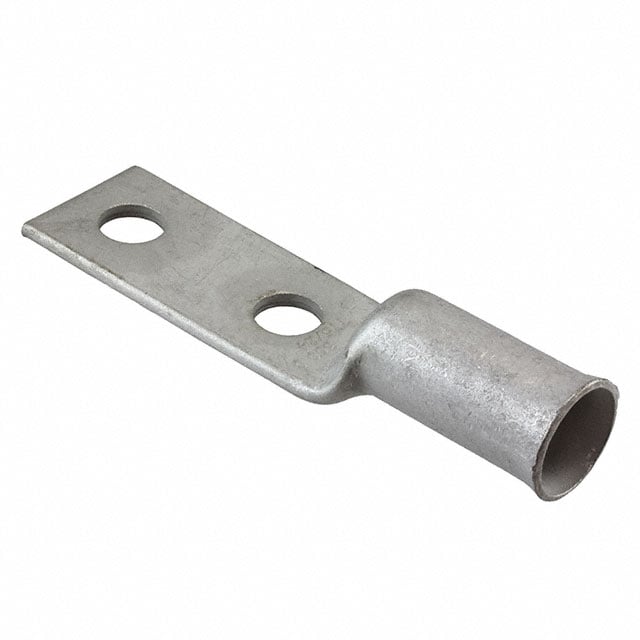

53684-2
Or copy the link below:
- Mfr.Part #
- 53684-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN TERM RECT TONG 300 MCM #1/2
- Stock
- 100
- In Stock ：
- 100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connectors
- Tongue Thickness :
- 4.06mm
- Plating Thickness :
- 3.81μm
- Length - Overall :
- 5.252 133.40mm
- Width - Outer Edges :
- 1.400 35.56mm
- Length :
- 133.4mm
- Tab Thickness :
- 0.160 4.06mm
- Terminal Style :
- Two Stud Holes
- Plating :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Free Hanging (In-Line)
- Terminal Type :
- Rectangular Tongue
- RoHS Status :
- RoHS Compliant
- Number of Holes :
- 2
- Insulated Wire Support :
- No
- Stud/Tab Size :
- 1/2 Stud
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Stud Diameter :
- 14.2748 mm
- Insulation :
- Non-Insulated
- Sealable :
- No
- Contact Material :
- Copper
- Diameter - Barrel ID :
- 0.758 (19.25mm)
- Stud Size :
- M12
- Diameter - Ring ID :
- 0.562 (14.27mm)
- Packaging :
- Bulk
- Wire Gauge :
- 300MCM (kcmil)
- Contact Finish :
- Tin
- ELV :
- Compliant
- Series :
- Ampower
- Heavy Duty :
- No
- Diameter - Barrel OD :
- 1.142 (29.01mm)
- Material :
- Copper
- Diameter - Inside :
- 19.25 mm
- Factory Lead Time :
- 17 Weeks
- Material Thickness :
- 2.794mm
- Published :
- 2012
- Government Qualified :
- No
- Termination :
- Crimp, Barrel
- Datasheets
- 53684-2
