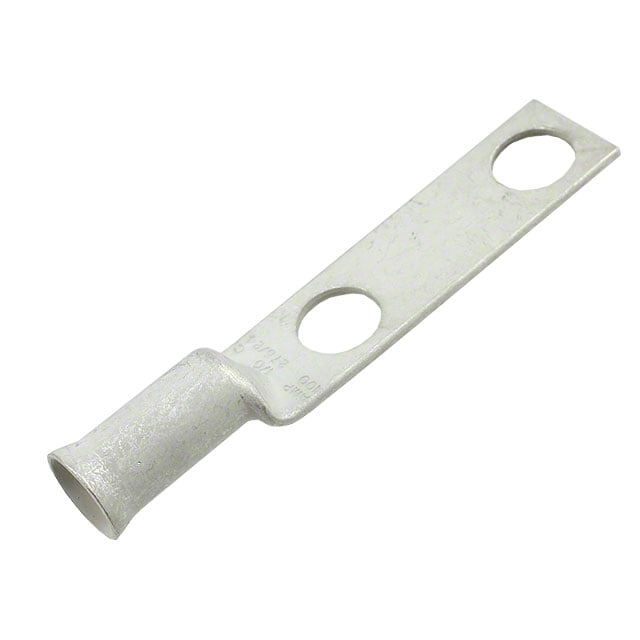

53680-2
Or copy the link below:
- Mfr.Part #
- 53680-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN TERM RECT 1/0 AWG #1/2
- Stock
- 9,173
- In Stock ：
- 9,173
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connectors
- Factory Lead Time :
- 13 Weeks
- Width - Outer Edges :
- 0.850 21.59mm
- Wire Gauge :
- 1/0 AWG
- Insulated Wire Support :
- No
- Lead Free :
- Lead Free
- Tongue Thickness :
- 2.54mm
- Plating :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length - Overall :
- 4.270 108.46mm
- Terminal Type :
- Standard
- Diameter - Inside :
- 11.63 mm
- Body Plating :
- Tin
- Length :
- 108.5088mm
- Tab Thickness :
- 0.100 2.54mm
- Mounting Type :
- Free Hanging (In-Line)
- Diameter - Barrel ID :
- 0.458 (11.63mm)
- RoHS Status :
- RoHS Compliant
- Number of Holes :
- 2
- Insulation :
- Non-Insulated
- Stud Diameter :
- 14.2748 mm
- Stud/Tab Size :
- 1/2 Stud
- Terminal Style :
- Two Stud Holes
- Material :
- Copper
- Stud Size :
- M12
- Body Material :
- Copper
- Contact Finish :
- Tin
- Published :
- 2004
- Material Thickness :
- 2.4892mm
- Contact Plating :
- Tin
- Thickness :
- 2.5mm
- Termination :
- Crimp, Barrel
- Plating Thickness :
- 3.81μm
- Government Qualified :
- No
- Packaging :
- Bulk
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Heavy Duty :
- No
- Diameter - Ring ID :
- 0.562 (14.27mm)
- Diameter - Barrel OD :
- 0.720 (18.30mm)
- Sealable :
- No
- Mount :
- Free Hanging
- ELV :
- Compliant
- Depth :
- 21.6mm
- Contact Material :
- Copper
- Series :
- Ampower
- Datasheets
- 53680-2
