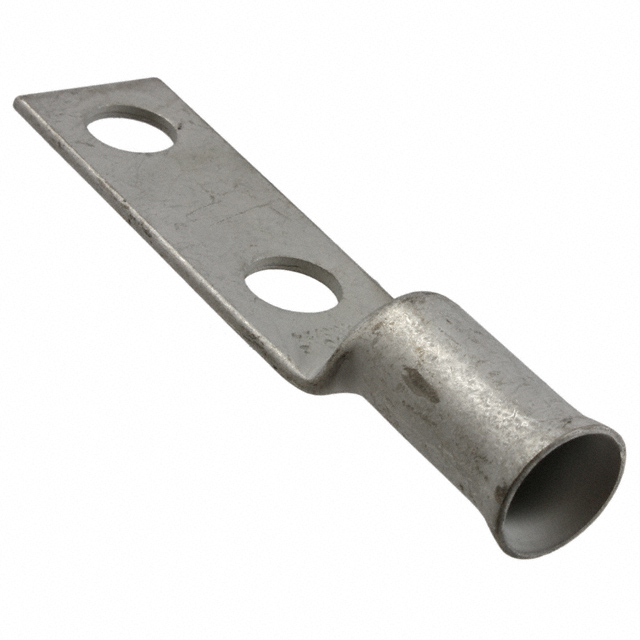

53682-2
Or copy the link below:
- Mfr.Part #
- 53682-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN TERM RECT 3/0 AWG #1/2
- Stock
- 37,045
- In Stock ：
- 37,045
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connectors
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- RoHS Compliant
- Terminal Gender :
- Male
- Mounting Type :
- Free Hanging (In-Line)
- Tongue Thickness :
- 3.048mm
- Contact Material :
- Copper
- Terminal and Terminal Block Type :
- RING TERMINAL
- Series :
- Ampower
- Diameter - Ring ID :
- 0.562 (14.27mm)
- Lead Free :
- Lead Free
- Mount :
- Free Hanging
- Terminal Style :
- Two Stud Holes
- Plating Thickness :
- 3.81μm
- Contact Finish :
- Tin
- HTS Code :
- 8536.90.40.00
- Tab Thickness :
- 0.120 3.05mm
- Published :
- 2016
- Length :
- 119.13mm
- Width - Outer Edges :
- 1.080 27.43mm
- Diameter - Barrel OD :
- 0.890 (22.60mm)
- Stud/Tab Size :
- 1/2 Stud
- Diameter - Barrel ID :
- 0.576 (14.63mm)
- Diameter - Inside :
- 14.63 mm
- ELV :
- Compliant
- Factory Lead Time :
- 12 Weeks
- Stud Diameter :
- 14.2748 mm
- ECCN Code :
- EAR99
- Wire Gauge :
- 3/0 AWG
- Heavy Duty :
- No
- Insulation :
- Non-Insulated
- Terminal Type :
- Standard
- Termination :
- Crimp, Barrel
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Number of Holes :
- 2
- Length - Overall :
- 4.690 119.13mm
- Packaging :
- Bulk
- Stud Size :
- M12
- Pbfree Code :
- yes
- Material Thickness :
- 2.794mm
- Datasheets
- 53682-2
53682-2 datasheet pdf and Terminals - Rectangular Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
