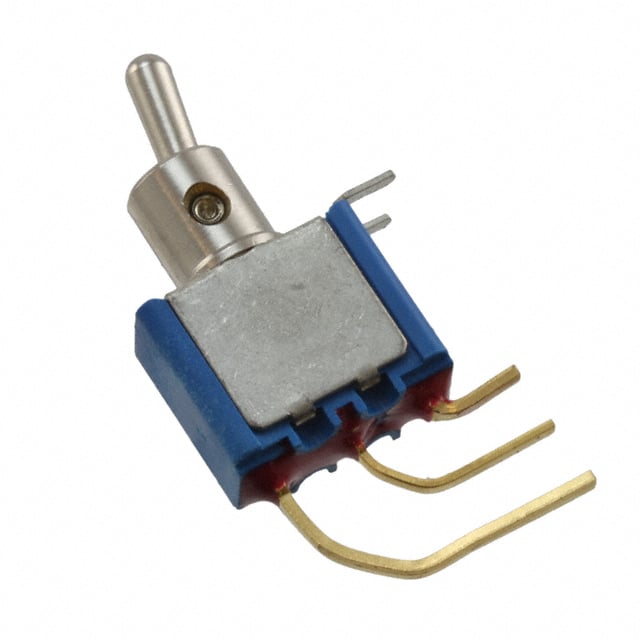

5236WWCDB16X445
Or copy the link below:
- Mfr.Part #
- 5236WWCDB16X445
- Manufacturer
- APEM Inc.
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE SPDT 0.4VA 20V
- Stock
- 6
- In Stock ：
- 6
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- APEM Inc.
- Product Category :
- Contact Resistance :
- 10MOhm
- Termination :
- PC Pin
- Sealing :
- EPOXY TERMINAL SEALED
- Actuator Material :
- Brass, Nickel Plated
- Series :
- 5000
- Max Voltage Rating (DC) :
- 20V
- Pbfree Code :
- yes
- Factory Lead Time :
- 9 Weeks
- Electrical Life :
- 50,000 Cycles
- Voltage - Rated AC :
- 20V
- Operating Temperature :
- -40°C~85°C
- Packaging :
- Tray
- Contact (DC) Max Rating R Load :
- .02A@20VDC
- JESD-609 Code :
- e4
- Mount :
- Brackets, Through Hole, Vertical
- Feature :
- Epoxy Sealed Terminals
- Contact Current(DC)-Max :
- 0.02A
- Current Rating (Amps) :
- 0.4VA AC/DC
- Actuator Length :
- 8.50mm
- Voltage - Rated DC :
- 20V
- Body Length or Diameter :
- 11mm
- RoHS Status :
- ROHS3 Compliant
- HTS Code :
- 8536.50.90.65
- Current Rating :
- 6A
- Circuit :
- SPDT
- Mounting Type :
- Through Hole, Right Angle, Vertical
- ECCN Code :
- EAR99
- Actuator Type :
- Standard Round
- Body Breadth :
- 7 mm
- Max Voltage Rating (AC) :
- 20V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Plating :
- Gold
- Bushing Thread :
- Unthreaded
- Switch Function :
- On-On
- Termination Style :
- PC Pin
- Contact (AC) Max Rating R Load :
- .02A@20VAC
- Illumination :
- Non-Illuminated
- Contact Current(AC)-Max :
- 0.02A
- Switch Type :
- TOGGLE SWITCH
- Housing Material :
- Stainless Steel
- Mechanical Life :
- 100000 cycles
- Body Height :
- 13.2mm
- Contact Material :
- Brass
- Datasheets
- 5236WWCDB16X445
