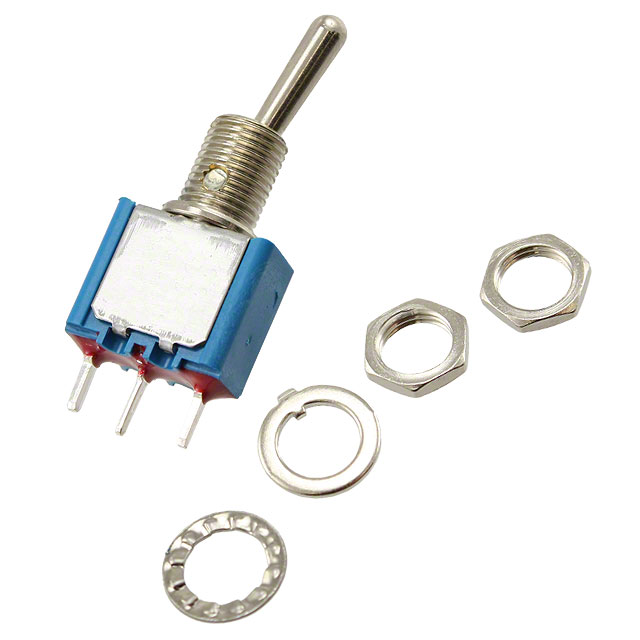

5236AB

Manufacturer :

APEM Inc.

Product Category :

Body Length or Diameter :

13.2mm

Actuator Type :

Standard Round

Contact Material :

Silver

Electrical Life :

50,000 Cycles

Max Voltage Rating (AC) :

250V

Current Rating (Amps) :

6A AC 4A DC

Circuit :

SPDT

Max Voltage Rating (DC) :

30V

Illumination Type :

Illuminated, Non-Illuminated

Series :

5000

Termination Style :

PC Pin

Bushing Thread :

1/4-40

Panel Cutout Dimensions :

Circular - 6.50mm Dia

ECCN Code :

EAR99

Mounting Type :

Panel Mount

Termination :

PC Pin

Illumination :

Non-Illuminated

Contact Current(AC)-Max :

6A

RoHS Status :

ROHS3 Compliant

HTS Code :

8536.50.90.50

Factory Lead Time :

5 Weeks

Pbfree Code :

yes

Body Breadth :

7 mm

Voltage - Rated DC :

30V

Mechanical Life :

100000 cycles

Contact Current(DC)-Max :

4A

Switch Type :

TOGGLE SWITCH

Sealing :

EPOXY TERMINAL SEALED

Mount :

Panel

Voltage - Rated AC :

125V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact (AC) Max Rating R Load :

6A@125VAC

Contact (DC) Max Rating R Load :

4A@30VDC

Switch Function :

On-On

Contact Resistance :

10MOhm

Current Rating :

4A

Body Height :

13.3mm

Packaging :

Tray

Feature :

Epoxy Sealed Terminals

JESD-609 Code :

e4

Housing Material :

Stainless Steel

Orientation :

Straight

Actuator Length :

10.50mm

Operating Temperature :

-40°C~85°C

Actuator Material :

Brass, Nickel Plated
