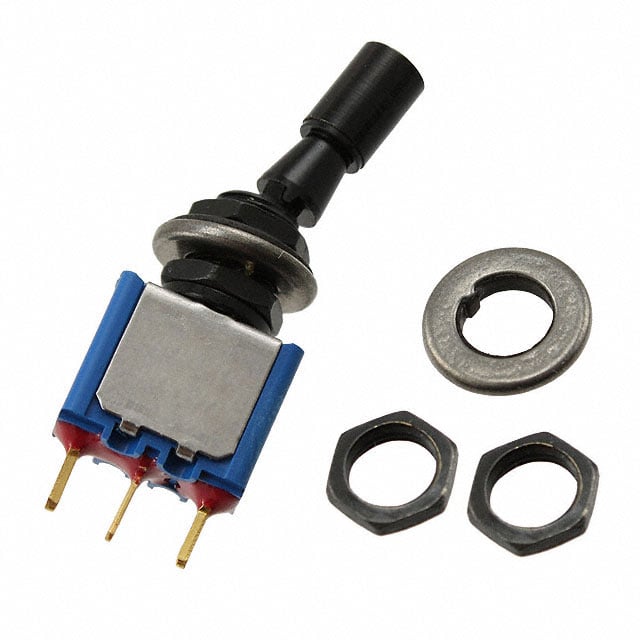

5236CDGKB2V
Or copy the link below:
- Mfr.Part #
- 5236CDGKB2V
- Manufacturer
- APEM Inc.
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE SPDT 0.4VA 20V
- Stock
- 125
- In Stock ：
- 125
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- APEM Inc.
- Product Category :
- Termination Style :
- PC Pin
- Voltage - Rated DC :
- 20V
- Illumination :
- Non-Illuminated
- Voltage - Rated AC :
- 20V
- Actuator Type :
- Locking Lever
- Circuit :
- SPDT
- Electrical Life :
- 50,000 Cycles
- Throw Configuration :
- SPDT
- Factory Lead Time :
- 9 Weeks
- Mounting Type :
- Panel Mount
- Min Operating Temperature :
- -40°C
- Series :
- 5000
- Actuator Material :
- Brass, Nickel Plated
- Max Operating Temperature :
- 85°C
- Operating Temperature :
- -40°C~85°C
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Panel Cutout Dimensions :
- Circular - 6.50mm Dia
- Feature :
- Matte Black Finish
- Illumination Type :
- Non-Illuminated
- Switch Function :
- On-On
- Actuator Length :
- 14.75mm
- Packaging :
- Tray
- Current Rating (Amps) :
- 0.4VA AC/DC
- Mount :
- Panel
- Bushing Thread :
- 1/4-40
- Termination :
- PC Pin
- Datasheets
- 5236CDGKB2V
5236CDGKB2V datasheet pdf and Toggle Switches product details from APEM Inc. stock available at
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
