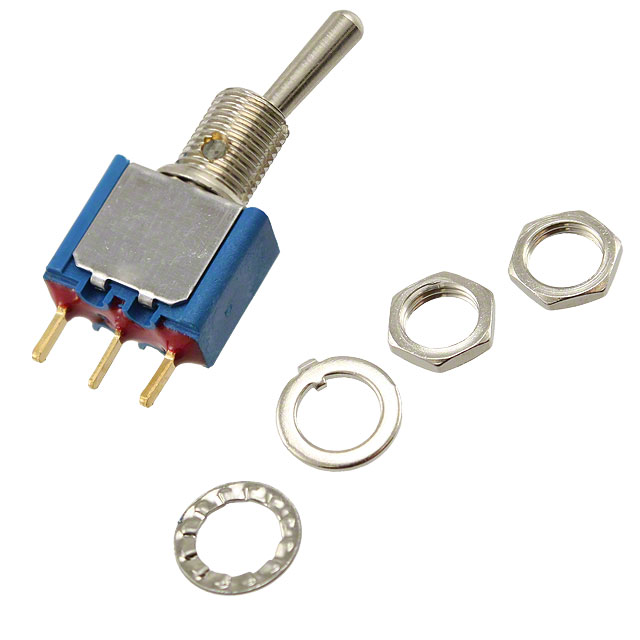

5236CDB

Manufacturer :

APEM Inc.

Product Category :

Power Rating :

400mW

Contact (AC) Max Rating R Load :

.02A@20VAC

RoHS Status :

ROHS3 Compliant

Contact Resistance :

10MOhm

Factory Lead Time :

5 Weeks

Mechanical Life :

100000 cycles

Body Length or Diameter :

13.2mm

HTS Code :

8536.50.90.65

Panel Cutout Dimensions :

Circular - 6.50mm Dia

Body Height :

13.3mm

Mounting Type :

Panel Mount

Orientation :

Straight

ECCN Code :

EAR99

Packaging :

Tray

Contact Current(AC)-Max :

0.02A

Contact (DC) Max Rating R Load :

.02A@20VDC

Max Voltage Rating (DC) :

20V

Voltage - Rated AC :

20V

Illumination :

Non-Illuminated

Current Rating (Amps) :

0.4VA AC/DC

Voltage - Rated DC :

20V

Contact Plating :

Gold

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Bushing Thread :

1/4-40

Actuator Type :

Standard Round

Electrical Life :

50,000 Cycles

Contact Material :

Brass, Gold

Housing Material :

Stainless Steel

Body Breadth :

7 mm

Series :

5000

Actuator Material :

Brass, Nickel Plated

REACH SVHC :

No SVHC

Mount :

PCB, Panel

Actuator Length :

10.50mm

Current Rating :

6A

Sealing :

EPOXY TERMINAL SEALED

JESD-609 Code :

e4

Termination :

PC Pin

Circuit :

SPDT

Operating Temperature :

-40°C~85°C

Contact Current Rating :

400mA

Pbfree Code :

yes

Contact Current(DC)-Max :

0.02A

Max Voltage Rating (AC) :

20V

Switch Function :

On-On

Switch Type :

TOGGLE SWITCH

Feature :

Epoxy Sealed Terminals

Termination Style :

PC Pin
