5223004-2
Or copy the link below:
- Mfr.Part #
- 5223004-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FUTUREBUS 60P EDGE MNT
- Stock
- 445
- In Stock ：
- 445
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Circuit Application :
- Signal
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Sealable :
- No
- Operating Temperature :
- -55°C~125°C
- IEC Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- ECCN Code :
- EAR99
- PCB Mounting Orientation :
- RIGHT ANGLE
- Published :
- 1999
- Total Number of Contacts :
- 60
- Contact Pattern :
- RECTANGULAR
- Polarization Key :
- POLARIZED HOUSING
- Option :
- GENERAL PURPOSE
- Contact Current Rating :
- 3A
- Contact Plating :
- Gold, Tin
- Number of Positions Loaded :
- All
- Number of Signal Positions :
- 60
- Reference Standard :
- UL, CSA
- Connector Style :
- Futurebus
- PCB Mount Retention :
- Without
- PCB Contact Pattern :
- RECTANGULAR
- Max Voltage Rating (AC) :
- 30V
- MIL Conformance :
- No
- Length :
- 23.88mm
- Number Of PCB Rows :
- 5
- Pitch :
- 0.079 2.00mm
- Number of Positions :
- 60
- DIN Conformance :
- No
- Orientation :
- RIGHT ANGLE
- Length - Tail :
- 2.73mm
- Mixed Contacts :
- No
- Filter Feature :
- No
- Operating Supply Voltage :
- 30V
- Connector Type :
- Receptacle, Female Sockets
- Contact Finish Thickness - Mating :
- 49.9999 nm
- Packaging :
- Tube
- Factory Lead Time :
- 15 Weeks
- Housing Material :
- Polymer
- Mount :
- Edge, Through Hole
- Contact Material :
- Bronze
- Depth :
- 22.45mm
- RoHS Status :
- RoHS Compliant
- Pbfree Code :
- yes
- Insulation Resistance :
- 5GOhm
- Termination :
- Solder
- Mating Alignment :
- With
- Material Flammability Rating :
- UL94 V-0
- Contact Finish :
- Gold
- Flammability Rating :
- UL94 V-0
- Dielectric Withstanding Voltage :
- 1000VAC V
- Reliability :
- COMMERCIAL
- Durability :
- 100 Cycles
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Plating Thickness :
- 3.81μm
- Color :
- Natural
- Number of Rows :
- 5
- Feature :
- Spacer
- Row Spacing :
- 2 mm
- Height :
- 13.276326mm
- Gender :
- Receptacle
- Contact Style :
- SQ PIN-SKT
- Series :
- Z-PACK
- Lead Length :
- 2.73mm
- Number of Conductors :
- ONE
- Datasheets
- 5223004-2

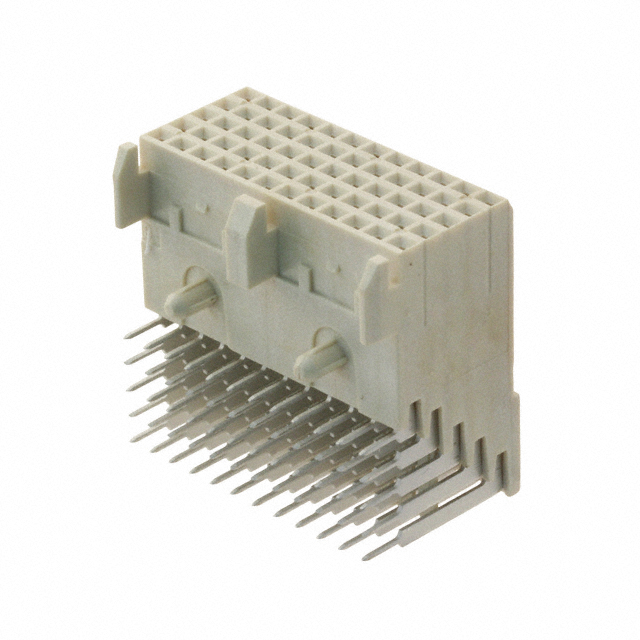

Z-PACK Series Receptacle, Female Sockets Solder Gold Natural 60 Positions Pitch: 0.079 2.00mm -55°C~125°C Tube Board Edge, Through Hole, Right Angle
5223004-2 Overview
The product comes in a package of Receptacle, Female Sockets.Board Edge, Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the Z-PACK Series.It is more powerful in many ways due to its Spacer feature.It is mounted by Edge, Through Hole.It operates at an operating temperature of -55°C~125°C.As long as the supply voltage is 30V, this Backplane Connector is functional.
5223004-2 Features
Z-PACK series
5223004-2 Applications
There are a lot of TE Connectivity AMP Connectors
5223004-2 Backplane Connectors applications.
