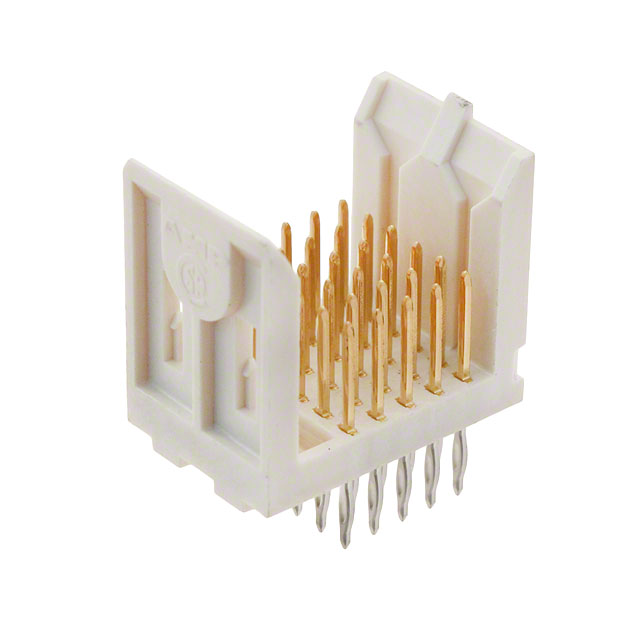

5223002-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Specialized

Factory Lead Time :

16 Weeks

Filter Feature :

No

Series :

Z-PACK

Mixed Contacts :

No

Mount :

Through Hole

Sealable :

No

Reference Standard :

UL, CSA

Length - Tail :

4.25mm

Published :

1999

Operating Temperature :

-55°C~125°C

Contact Style :

SQ PIN-SKT

IEC Conformance :

No

DIN Conformance :

No

Mounting Type :

Through Hole

Body Breadth :

0.701 inch

Width :

18mm

Orientation :

Vertical

Contact Material :

Bronze

ELV :

Compliant

Pitch :

0.079 2.00mm

Number of Positions Loaded :

All

Contact Pattern :

RECTANGULAR

Height :

17.8mm

Total Number of Contacts :

30

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Connector Style :

Futurebus

PCB Mount Alignment :

Without

Number of Rows :

5

Connector Type :

Header, Male Pins

Contact Current Rating :

3A

RoHS Status :

RoHS Compliant

Number of Signal Positions :

30

Insulation Resistance :

5GOhm

Contact Finish :

Gold

Contact Plating :

Gold, Tin

Operating Supply Voltage :

30V

Termination :

Press-Fit

ECCN Code :

EAR99

Length :

11.88mm

Dielectric Withstanding Voltage :

1000VAC V

Lead Length :

4.2418mm

Color :

Natural

Body/Shell Style :

PLUG

Circuit Application :

Signal

PCB Contact Pattern :

RECTANGULAR

Option :

GENERAL PURPOSE

Contact Finish Thickness - Mating :

759.99848 nm

MIL Conformance :

No

Pbfree Code :

yes

Row Spacing :

2 mm

Gender :

Male

Number of Positions :

30

Package / Case :

Module

Number Of PCB Rows :

5

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Polarization Key :

POLARIZED HOUSING

Plating Thickness :

600 nm

Voltage - Rated AC :

30V

Number of Conductors :

ONE

Material Flammability Rating :

UL94 V-0

Lead Free :

Not Applicable

Depth :

17.8mm

Flammability Rating :

UL94 V-0

Max Voltage Rating (AC) :

30V

Mating Alignment :

With

Reliability :

COMMERCIAL

Mating Post Length :

6.5mm

Housing Material :

Polymer

Packaging :

Tube
